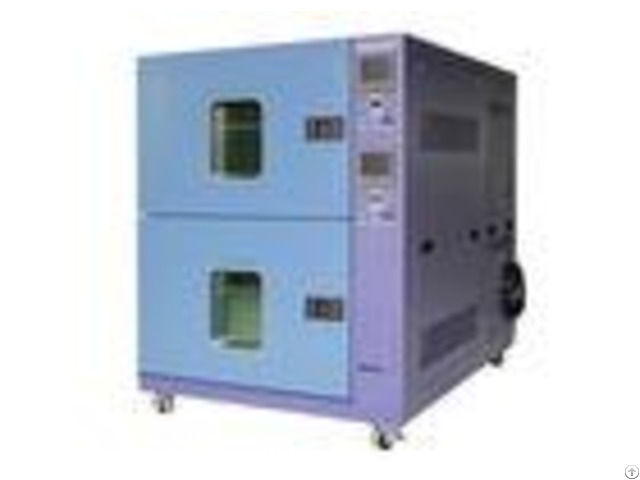

Stainless Steel Temperature Test Chamber Easy Cleaning Air Water Cooled - China

Stainless Steel Environmental Temperature Chamber Air Cooled / Water Cooled Rapid Temperature Change Test Chambers is suitable for testing the changes of instruments, electrical, electronic products, machine and parts under the rapid temperature change or the the gradient conditions, takes advantage of compact, modern scroll compressors to bring fast temperature cycling to small form factor.

The chamber can cycle temperatures at rates up to 15C/minute without requiring cooling water or liquid nitrogen.

The faster cycle times can be used to meet more aggressive test methods that require thermal stress during transitions.

Significant test time can be saved in completing tests, as well.

To demonstrate performance, Grande uses the international standard IEC 60068 3-5 measured at the supply air.

Temperature cycles are run from hot to cold extremes, and the middle 80% of the transition is timed to determine performance.

Your actual cycling results will vary depending on methodology, including the start and end temperatures, and the amount of samples loaded.

Features QUALITY CONSTRUCTION < Stainless steel exterior and interior < Rounded interior corners for easy cleaning < Full thermal break around doorframe and door < Rotating door latch is easy and secure < Dual-layer insulation of fiberglass and expanded foam for thermal integrity < One 2" (50mm) to One 4" (100mm) diameter cable port on the left, with an impervious, flexible silicone plug < Easy lift-off service panels < Pressure relief port to allow air volume changes due to rapid temperature changes < Three levels of overheat protection - - - - Model | SMC-80-CC-FB | SMC-150-CC-FB | SMC-225-CC-FB | SMC-408-CC-FB | SMC-800-CC-FB | SMC-1000-CC-FB | SMC-1500-CC-FB | Temperature | Temperature control range | -70180 (A: 0180;B: -20180C: -40180; D: -70180) | Temperature fluctuation | 0.5 | Cooling rate | 180.0-70.0 Within 100 mins 1.03.0/min | Heating rate | -70.0180.0 Within 60 mins 3.05.0/min | Temperature uniformity | 1.5 (-40.0100.0) | 2.0 (100.1180.0or-40.0-70.0) | Humidity | Humidity control range | 10.0%RH98.0%RH (60 above corresponds to 10%RH) | Humidity fluctuation | 1.0% RH | Humidity uniformity | 2.0RH | Material / components | Internal material | Adopts 1.2mm thickness stainess steel(SUS304) | External material | Adopts 1.2mm thickness Cold rolled steel sheet / powder spraying | Heat insulating material | 100mm thickness polyurethane plate10mm thickness mineral wool | Fan | Centrifugal blower | Compressor | Semi-closed Germany Bock, Germany Bitzer | Condenser | Air cooling, water cooling | Refrigerant | R404A, R23, R508 | Evaporator | Fin - and - Tube Heat Exchanger | Heater | Nickel chromium alloy heating wire | Humidifier | Steam humidifier | Options | Standard configuration | 2 100MM pressure relief port, 4 explosion-prood chains | Multipoint temperature monitor | Adopts Sanwood developed controller, which can be used to acquire surface temperature points of multiple products | C02 fire extinguisher | Automatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning | C0, H2 gas detector | When the battery will produce gas, it will detect gas solubility and discharge to outdoor when it exceeds the standard | Exhaust valve | When the test sample produces harmful gas, ventilate and exhaust internally | Size | Interior size(mm) W*H*D | 500*500 *400 | 500*600 *500 | 500*750 *600 | 800*850 *600 | 1000*1000 *800 | 1000*1000 *1000 | 1200*1000 *1250 | Outer size(mm) W*H*D | 700*1680 *1180 | 700*1720 *1275 | 700*1930 *1290 | 1000*2050 *1400 | 1200*2100 *1590 | 1200*100 *1780 | 1400*2100 *2030 | Volume(m) | 80L | 150L | 225L | 408L | 800L | 1000L | 1500L | Weight | 280 | 380 | 450 | 620 | 680 | 840 | 955 | Operating ambient temperature | +5 ~ 35 | Power supply | 220V AC 50/60Hz 22A | 220V AC 50/60Hz 31A | 220V AC 50/60Hz 33A | 380V AC 50/60Hz 17A | 380V AC 50/60Hz 25A | 380V AC 50/60Hz 27A | 380V AC 50/60Hz 50A | Controller | Standard: South Korea TEMI-1500 Optional: South Korea TEMI-2500, South Korea TEMI-2700 | - - - -
