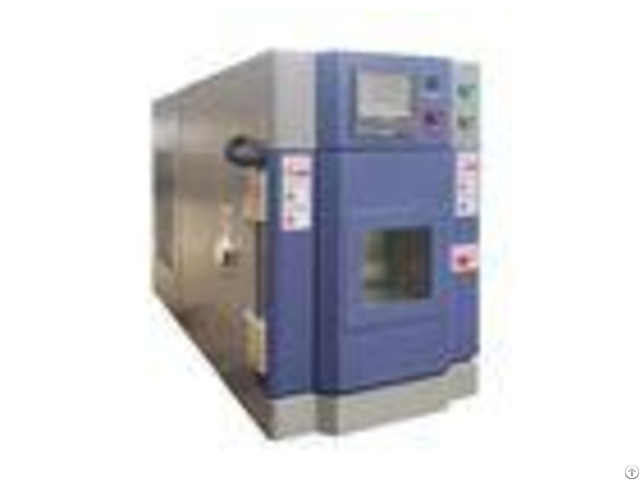

Standard Constant 22 5l Environmental Test Chamber For Electronic Devices - China

Standard Constant Laboratory Benchtop Chamber For Electronic Devices Standard Constant 22.5L Environmental Test Chamber For Electronic Devicesis applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance.

It is simple to operate and program easy to edit.

It can show the set values and operative time.

Applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

- - - - Equipment performance | Name | Benchtop Temperature Test Chamber | Model | SM-27-CD | Inner dimension | 300 x300x250mm ( W x H x D ) | Inner volume | 22.5L | Outer dimension | 500x 780 x1190mm ( W x H x D ) | Temperature Range | 0150 | Humidity Range | 10% to 98% | Heating Rate | 3.0~5.0/min | Cooling rate | 0.7~1.5/min | Temperature deviation | 1 | Humidity deviation | 2% | - - - - - - - - Mechanical structure design | 1-1 - Internal material | Cold resistance and heat resistance1.2mm stainless steel (SUS #304) plate fully welded | 1-2 - External material | 1.5mm A3 steel plate galvanized and paint | 1-2 - Main structure design | The Sheet metal area, Circuit area, Refrigeration zone, three parts.

| 1-3 - Heat/Cold storage material | Aluminum alloy have large capacity to storage heat and cold energy | 1-4 - Observation window | Multi - layer insulating glass observation window with energy-saving LED lighting source | 1-5 - Sample rack bearing capacity | No more than 20 kg/ each layer | 1-6 - Sample rack moving mode | The sample rack is movable.

| 1-7 - Sample Rack | 2 stainless steel self | 1-8 - Insulation layer | Heat insulation layer flame retardant PU+Heat insulation glass wool(100mm Insulation layer) | 1-9 - Equipment movement and fixation | Heavy duty casters with adjustable leveling feet | 1-10 - | Taiwan original rotatable handle Japanese original imports #304 SUS hinge, which can prevent the box door shaking.

Energy-saving 18W LED built into the window for easy viewing without glare.

| - - - - - - - - Model | SMC-22-CC | SMC-27-CC | SMC-64-CC | Temperature | temperature range | -60180 (A: 0180;B: -20180C: -40180; D: -60180) | temperature fluctuation | 0.5 | cooling rate | 180.0-60.0 Within about 100 minutes 1.03.0/min | Heating rate | -60.0180.0 Within about 60 minutes 3.05.0/min | temperature uniformity | 1.0 (-40.0100.0) | 1.5 (100.1180.0or-40.0-60.0) | Humidity | humidity range | 20.0%RH98.0%RH | humidity fluctuation | 1.0% RH | humidity uniformity | 2.0RH | Material | Internal material | SUS304 stainless steel(1.2mm) | External material | cold-rolled plate(1.2mm), powder coating | Heat insulation | polyurethane foam(100mm)+glass wool(10mm) | Fan | Centrifugal fan(Impeller Fan) | refrigeration compressor | hermetic compressor(Tecumseh) | cooling way | air cooling | refrigerant | R404A, R23, R508 | evaporator | finned-tube exchanger | heater | nickel chrome strip heater | humidifier | Steam Humidifier | Size | Interior(mm) W*H*D | 300X300X250 22.5L | 300X300X300 27L | 400X400X 400 64L | exterior(mm) W*H*D | 500X850X1150 | 500X 850X1190 | 600X950X1350 | weight | 85kg | 105kg | 105kg | Working Temperature | +5 ~ 35 | Power supply | 220V/AC 50/60Hz 12A | 220V/AC 50/60Hz 23A | 220V/AC 50/60Hz 23A | Controller | Standard: South Korea TEMI-1500 Optional: South Korea TEMI-2500, South Korea TEMI-2700 | - - - -
