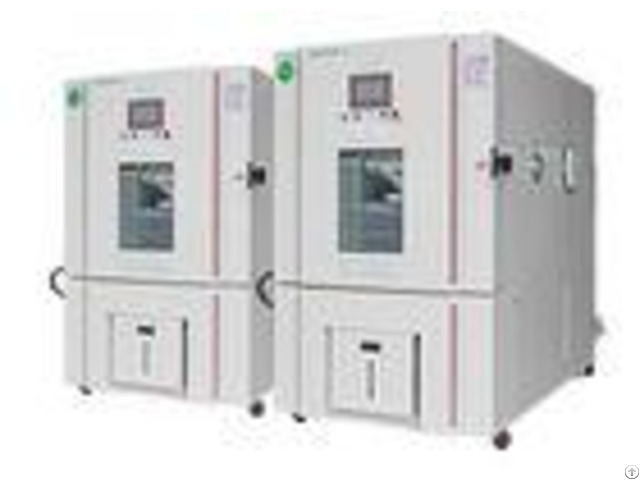

Touch Screen Environmental Stress Screening Chamber Reliability Testing - China

Environmental Stress Screening ESS Chamber Reliability Testing 1 - Advantages of Temperature Cycling: Many independent studies have been conducted analyzing the effectiveness of various types of ESS processes.

Conclusive data has been compiled by many manufacturers of electronic assemblies supporting today's thinking that temperature cycling is the most effective type of screening process.

While it has been demonstrated that both temperature cycling and random vibration together is the most effective screen in terms of identifying latent defects, if a single screen is to be used, temperature cycling is considered to be the single most effective screen in identifying latent defects.

According to the ESSEH guidelines, temperature cycling regularly detected an average of two-thirds more latent product defects than with random vibration alone, which is ranked second most effective in identifying defects.

Stress uniformity is without question the most important aspect of the screening process.

Temperature cycling provides the additional advantage of a uniform stress environment when air flow across the product is tightly controlled.

All areas of the product must be subjected to an equal amount of stress throughout the screen profile.

Some other methods of screening do not offer this uniformity across the product 2 - Standards Implemented and Met GB10592-89 Technical requirements for high and low temperature test chamber GB2423.1-1989 Low temperature test GB2423.2-1989 High temperature test mode 3 - Specifications - - - - # Product Name Model | Environmental Stress Screening Chamber SM-KS-270-70-15 | # Limited sample | This equipment forbid to test and storage following specimens: Flammable, explosive, volatile items Corrosive items Highly toxic items And items may produce toxic substances in the process of test or storage.

| # Dimension | | Volume Internal Dimension External Dimension | 270L W580D620H750mm W870D1980H1775mm (Approximately) | # Performance | | 4.1 - Test environmental conditions # Test method | Ambient temperature: +5+35 Relative humidity85%RH No-Load (Unless otherwise stated) GB/T5170.2-2008 Temperature test equipment GB/T5170.5-2008 Damp heat testing equipment | # Temperature range | -70+180 | # Temperature fluctuation | 0.3 to0.8 | # Temperature uniformity | 1(when the temperature70, humidity90%RH) 1(when the temperature>70, humidity80%RH) | # Temperature change rate # Standard load | Average 15/min 40kg Specimens | # Noise | A level70dB(A) | - - - - 4 - Applications: 4.1 A.

Who want his products more reliable in different environmental conditions B.

Who plan to make the world a better place with his high quality and reliability products 4.2 Location: Lab, testing center, 4.3 Note: Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spare parts, particularly applies to environmental stress screening test(ESS)
