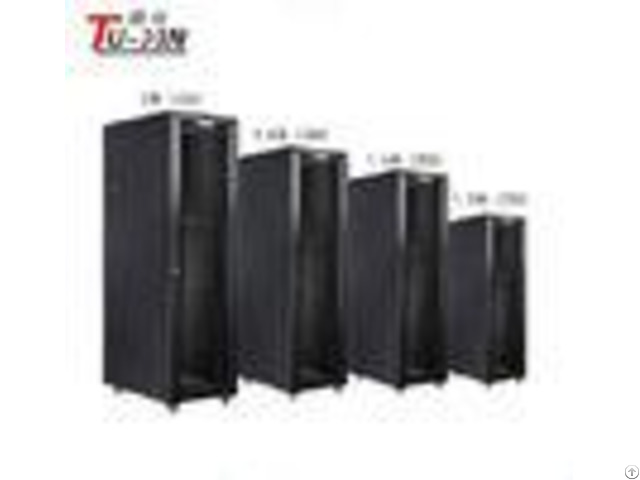

18u 22u 32u 42u 47u 19 Inch Server Rack Network Cabinet For Data Center - China

19 inch server rack 18u / 22u / 32u / 42u / 47u mesh front door server cabinet used for data center Features: 1 - Comply with ANSI/EIA;RS-310-D;IEC297- 2;DIN41491: PART1;DIN41494 : PART7;GB/T3047.2-92 standard;compatible with 19 international standard, metric system and EISI standard.

2 - The overall use of the frame structure, easy to install.

3 - Front door with perforated, back door steel plate.

4 - Using the upper and lower line way, can be closed up and down the alignment channel.

large hole size in bottom can be adjusted.

5 - Can easily remove the left and right side doors and front/rear doors.

6 - Install high-speed silent cooling fan at the top of the cabinet.

7 - The bottom of the installation of the steeling wheel to facilitate the movement, through the foot so that the overall balance.

8 - Front door with elastic lock, solid and cabinet connection.

Surface finish: Degreasing, pickling, phosphating, powder coating.

Material and Thickness: Mounting profile: 2.0mm Others: 1.2mm Color: RAL9004(black) RAL7044(gray) We have 6 years experience of production in network rack.

1 - About shipping: ningbo or shanghai, Send to your warehouse or your other supplier in China.

2 - About Payment: T/T, Western Union; LC; Paypal, 30% deposit 70% before shippment.

3 - About QC: Strict quality control system 4 - About delivery time: 10-15 days Pictures: Technical Parameters - - - - Brand: | TUXIN | Column spacing: | 465mm (19 inch) | No: | TX-WK-6642 | Material: | SPCC cold rolled steel | Size: | 600mm*600mm*42U | Function: | Can install server equipment, the router, patch panel, KVM, UPS, Network device, etc.

| IOS test: | Pass ISO9001: 2008 Qualtiy System | Thickness: | Mounting Profile: 1.5mm, others: 1.2/1.0mm | Surface treatment: | Degreasing, pickling, phosphating, power coating, etc.

| Configuration: | Cage nuts and M6 screws: 10 sets.

| Standard: | Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491PARTI, DIN41494PART7, GB/T3047.2-92 standard; compatible with ETSI standard.

| Device Installation: | It is recommended to install network equipment/server device within 350 mm depth.

| - - - - Features The first consideration should be security.

Putting mission-critical IT equipment into a lockable cabinet will make it easier for network administrators to limit the number of people who can open the cabinet.
