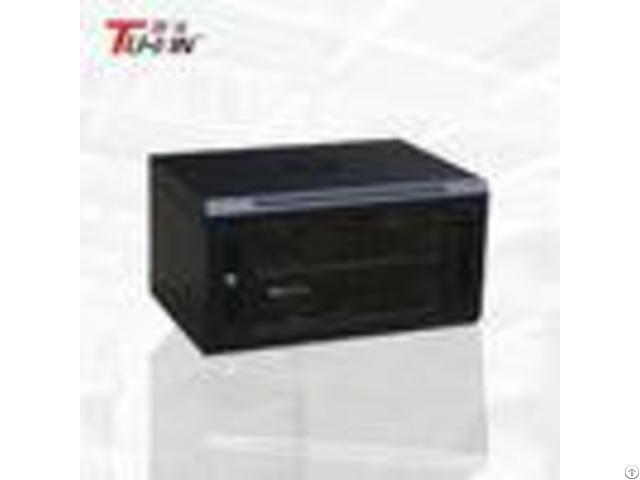

4u 24u Wall Mount Network Cabinet Powder Coating Surface Finish With Ventilation Holes - China

19 inch 6u 600mm * 450mm rack enclosures wall mount network cabinet with ventilation holes Features: # # Comply with ANSI/EIA;RS-310-D;IEC297- 2; DIN41491: PART1;DIN41494: P ART7;GB/T3047.2-92 standard; compatible with 19 international standard, metric system and EISI standard.

# # Advanced technology, precise size.

# Reliable structure, static loading capacity: 60KG.

# Quick and easy wall mounted, 19 standard installation inside.

# Can be flated pack, save transportation inside.

# 120mm size fan could be installed at top of cabinet.

# Cable entry from top and bottom.

# IP degree: IP20 - Surface finish: Degreasing, pickling, phosphating, powder coating.

Material and Thickness: Mounting profile: 1.5mm Others: 1.2mm Color: RAL9004(black) RAL7044(gray) - - - - Brand: | TUXIN | Column spacing: | 465mm (19 inch) | No: | TX-WF-6406 | Material: | SPCC cold rolled steel | Size: | 600mm*450mm*6U | Function: | Can install server equipment, the router, patch panel, KVM, UPS, Network device, etc.

| IOS test: | Pass ISO9001: 2008 Qualtiy System | Thickness: | Mounting Profile: 1.5mm, others: 1.2/1.0mm | Surface treatment: | Degreasing, pickling, phosphating, power coating, etc.

| Configuration: | Cage nuts and M6 screws: 10 sets.

| Standard: | Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491PARTI, DIN41494PART7, GB/T3047.2-92 standard; compatible with ETSI standard.

| Device Installation: | It is recommended to install network equipment/server device within 350 mm depth.

| - - - - - - - - Order Codes | Capacity | W*D*H(mm) | TX-WF-6404 | 4 | 600*450*220 | TX-WF-6606 | 6 | 600*600*358 | TX-WF-6409 | 9 | 600*450*492 | TX-WF-6612 | 12 | 600*600*625 | TX-WF-6415 | 15 | 600*450*730 | TX-WF-6418 | 18 | 600*450*820 | TX-WF-6422 | 22 | 600*450*960 | TX-WF-6427 | 27 | 600*450*1280 | - - - - Cabinet technical requirements 1 should have good technical performance.

The structure of the cabinet shall be based on the electrical and mechanical properties of the equipment and the requirements of the use environment, and the necessary physical design and chemical design shall be carried out to ensure that the structure of the cabinet has good rigidity and strength, as well as good electromagnetic isolation, grounding, noise isolation, ventilation and heat dissipation.

And other properties.

In addition, the cabinet should be resistant to vibration, impact, corrosion, dust, water, radiation, etc., in order to ensure stable and reliable equipment.

2 It should have good usability and safety protection facilities to facilitate operation, installation and maintenance, and ensure operator safety.

3 should be easy to produce, assembly, commissioning and packaging and transportation.

4should meet the requirements of standardization, normalization and serialization.

5 beautiful appearance, application, color coordination.

Process Control: We strictly control all incoming materials, spare parts and the quality of the entire production process to ensure the production of high-quality cabinets.
