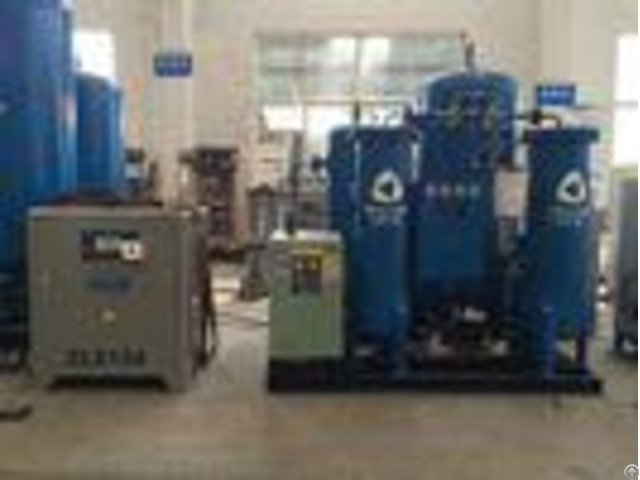

High Efficient Nitrogen Generator Plant With Air Compressor For Coal Storage Usage - China

High efficient Nitrogen Generator Plant with Air Compressor for coal storage usage 1 - Pressure Swing Adsorption Nitrogen making system Pressure swing adsorption (PSA) is an advanced gas separate technique, it is widely used in gas supply field in the world.

2 .

1 Adsorbing material Adsorbing material is the center part of PSA nitrogen generator, Normally use the the Carbon Molecular Sieve, it can adsorb the oxygen, CO2, water in the air, but cant adsorb the nitrogen.

2.2PSA principal Because O2 and N2 these two gas molecule have diffusion rate difference on the molecule sieve surface, O2 smaller diameter can diffuse faster, most of them inlet micropore of CMS, the large diameter N2 diffuse slowly, less of them can inlet, use this adsorption difference come true O2 and N2 separate.

Compressed air pass through 9 grade filters, then pass through cooling type dryer.

let the compressed air cooling, let the vapour in the air condensation into water, along with dust, oil drain out the machine.

Its better to put the cooling dryer in the compressed room.

After the cooling dryer is the filters, there are two group filters, one is 7 grade main pipeline filters, another is 5 grade high quality oil removing filter.

7 grade main pipeline filter precision is 1um, filter out 1um and larger solid state and liquid particle, vestigital oil content 1ppm w/w.

5 grade high quality oil removing filter filtrate precision 0.01um, remove 0.01um and larger solid state and liquid particle, 99.9999+% oil, the rest oil content 0.001 ppm w/w.

Compressed air quality can reach 1 class according to ISO8573.1 - Such clean and dry compressed air can inlet active carbon filter, air buffer tank then inlet nitrogen generator part, after PSA device make out the nitrogen purity 99%.

Normal purity N2 generator main parts.

- - - - Description | Type | Quantity | Remarks | PSA adsorption tower | Professional design | 2 pieces /10kg | Jiangyin Shuangqiu | CMS | MSC-3KT-172 | 1320kg | Japan Takeda/Wutian | Vortex airflow | Professional design | 2 pieces | Technical Carbotech from Germany | Self complement compact device | Professional design | 2sets | Jiangyin Tongyue | single unit processing part | / | 1 set | SMC-Japan | Sample pressure reduce valve | / | 1 piece | SMC-Japan | Direct current 24V power | / | 1 set | Taiwan-Mingwei | Pneumatic valves | DN80 | 5 pieces | Burkert Germany, approve | DN40 | 4 pieces | DN15 | 1 pieces | Magnetic valve | 4V210-24V | 10 pieces | Taiwan Airtac | Metal flow meter | LZZ-40 | 1 piece | Changzhou Shuanghuan | Control system | TPC7062K | 1set | (color touch screen )Kunlun Tongtai | Muffler | TY-300X | 1 set | Jiangyin Tongyue | Pipe valve system | bprofessional produce | 1 set | Jiangyin Tongyue | PLC controller | S7-200 | 1 set | Siemens Germany | Nitrogen analyzer | P860-3N | 1 set | Shanghai Changai | - - - - - - - - serial number | Patent No.

| Patent No.

( Accept No.

) | patent families | 1 | PSA highly efficient starting device | Patent No: ZL 2010 2 0139342.9 | utility model | 2 | Automatic control system of nitrogen generator with frequency conversion | Patent No: ZL 2012 2 0408277.4 | utility model | 3 | Exhaust gas recycling and utilization device | Patent No: ZL 2013 2 0867590.9 | utility model | 4 | Automatic control device for nitrogen purity | Patent No: ZL 2013 2 0867632.9 | utility model | 5 | PSA constant pressure constant regeneration system | Patent No: ZL 2010 2 0139343.3 | utility model | 6 | PSA cyclone umbrella type honeycomb air flow diffusion device | Patent No: ZL 2013 2 0139344.8 | utility model | 7 | PSA low decibel silencer | Patent No: ZL 2013 209 39345.2 | utility model | 8 | Top gathering fountain type gas collecting device | Patent No: ZL 2010 2 0569506.1 | utility model | 9 | Dynamic cylinder pressing device | Patent No: ZL 2011 2 0015073 - X | utility model | - - - -
