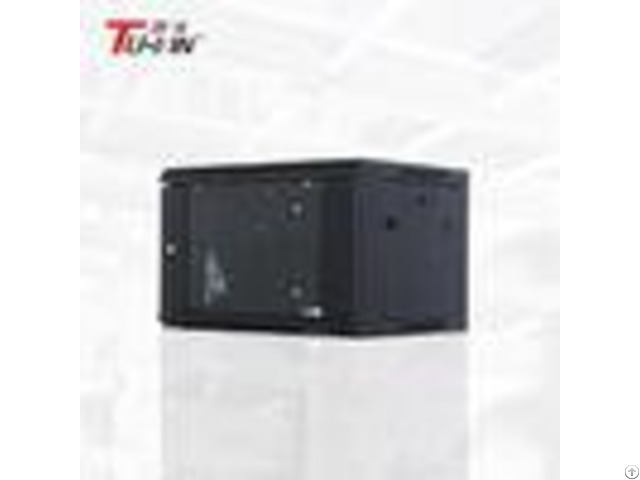

Indoor 6u Wall Mount Network Cabinet Double Section 600 X 600mm Dustproof - China

Wall mount network cabinet 6U double section 600 x 600mm wall mount rack Features: # # Comply with ANSI/EIA;RS-310-D;IEC297- 2;DIN41491: PART1;DIN41494 : PART7;GB/T3047.2-92 standard; compatible with 19 international standard, metric system and EISI standard.

# # Advanced technology, precise size.

# Reliable structure, static loading capacity: 60KG.

# Quick and easy wall mounted, 19 standard installation inside.

# Can be flated pack, save transportation inside.

# 120mm size fan could be installed at top of cabinet.

# Cable entry from top and bottom.

# IP degree: IP20 - Surface finish: Degreasing, pickling, phosphating, powder coating.

Material and Thickness: Mounting profile: 1.5mm Others: 1.2mm Color: RAL9004(black) RAL7044(gray) - - - - Brand: | TUXIN | Column spacing: | 465mm (19 inch) | No: | TX-WF-6406 | Material: | SPCC cold rolled steel | Size: | 600mm*450mm*6U | Function: | Can install server equipment, the router, patch panel, KVM, UPS, Network device, etc.

| IOS test: | Pass ISO9001: 2008 Qualtiy System | Thickness: | Mounting Profile: 1.5mm, others: 1.2/1.0mm | Surface treatment: | Degreasing, pickling, phosphating, power coating, etc.

| Configuration: | Cage nuts and M6 screws: 10 sets.

| Standard: | Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491PARTI, DIN41494PART7, GB/T3047.2-92 standard; compatible with ETSI standard.

| Device Installation: | It is recommended to install network equipment/server device within 350 mm depth.

| - - - - - - - - Order Codes | Capacity | W*D*H(mm) | TX-WF-6404 | 4 | 600*450*220 | TX-WF-6606 | 6 | 600*600*358 | TX-WF-6409 | 9 | 600*450*492 | TX-WF-6612 | 12 | 600*600*625 | TX-WF-6415 | 15 | 600*450*730 | TX-WF-6418 | 18 | 600*450*820 | TX-WF-6422 | 22 | 600*450*960 | TX-WF-6427 | 27 | 600*450*1280 | - - - - Welded frame, stable structure with precise craftsmanship; Single section, compatiblewith 19"standard equipment; Tempered glass front door with over 180 turning degree; Removable side panel, easy to install and maintain (lock optional); Cable entry on the top cover and bottom panel with knock-out plate; L-shaped mounting profile, easy to adjustable on the mounting rail; Fan cutout on the top cover, easy to install fan; Swing back with over 90 turning degree; Various accessories for optional; Staff Technology: The staff has trained strict pre-job training.

Our staff has enough production process knowledge, strong sense of quality and self-checking awareness.

"Quality is not defective, customer zero complaints" is our goal.

We provide customers with satisfactory products and services according to international standards.

All of these guarantee the high quality of our products.
