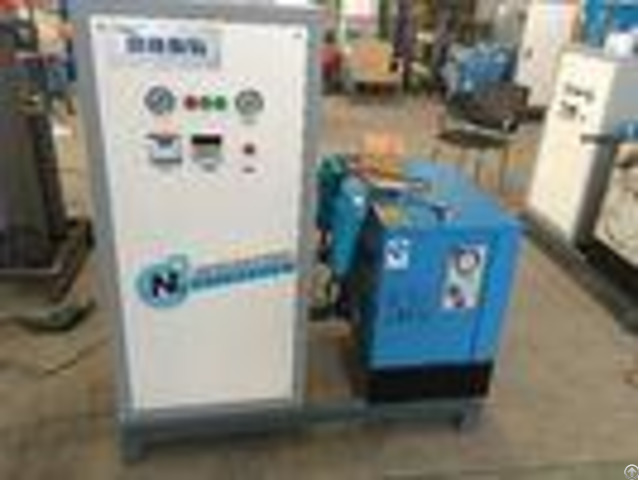

Psa Type High Purity Laboratory Nitrogen Generator Lab Usage - China

PSA type high purity Laboratory nitrogen generator lab usage Jiangsu Tongyue Gas System Co., ltd.specializes in the production of nitrogen generators, air compressors, oxygen and other gas processing equipment.

The products are widely used in food, medicine, chemical industry, chemical fiber, metallurgy heat treatment, electronics, steel, coal, and other industries.

The products involve in many fields and offer multiple functions.

The company has extensive technical experience in the applications of different industrial gases, providing customers with a full range of gas solutions, while allowing them to enjoy convenient and efficient after-sales services.

1 - Compressed air system Air compressor supply the raw material air for the nitrogen generator.

The nitrogen making system need high quality, stable pressure and enough air consumption.

Air compressor should use the reliable, maintenance easily, low noise, screw air compressor.

Remark: We suggest air compressor prepare a spare set, to confirm the produce stable.

2 - Compressed air clarification system Compressed air pass through 9 grade filters, then pass through cooling type dryer.

let the compressed air cooling, let the vapour in the air condensation into water, along with dust, oil drain out the machine.

Its better to put the cooling dryer in the compressed room.

After the cooling dryer is the filters, there are two group filters, one is 7 grade main pipeline filters, another is 5 grade high quality oil removing filter.

7 grade main pipeline filter precision is 1um, filter out 1um and larger solid state and liquid particle, vestigital oil content 1ppm w/w.

5 grade high quality oil removing filter filtrate precision 0.01um, remove 0.01um and larger solid state and liquid particle, 99.9999+% oil, the rest oil content 0.001 ppm w/w.

Compressed air quality can reach 1 class according to ISO8573.1 - Such clean and dry compressed air can inlet active carbon filter, air buffer tank then inlet nitrogen generator part, after PSA device make out the nitrogen purity 99%.

3 - Pressure Swing Adsorption Nitrogen making system Pressure swing adsorption (PSA) is an advanced gas separate technique, it is widely used in gas supply field in the world.

3 .

1 Adsorbing material Adsorbing material is the center part of PSA nitrogen generator, Normally use the the Carbon Molecular Sieve, it can adsorb the oxygen, CO2, water in the air, but cant adsorb the nitrogen.

3.2 PSA principal Because O2 and N2 these two gas molecule have diffusion rate difference on the molecule sieve surface, O2 smaller diameter can diffuse faster, most of them inlet micropore of CMS, the large diameter N2 diffuse slowly, less of them can inlet, use this adsorption difference come true O2 and N2 separate.

Features of Our Products Full Automation All systems are designed for unattended operation and automatic Nitrogen demand adjustment.

Low Electric Energy Consumption All systems are designed for Energy-Efficient.

Lower Space Requirement and Short installation period The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory.

Tongyue Machinery has own TRUE brand of gas separation equipments.

Installation is very easy and convenient.

Fast Start-Up Start-up time is about 30 minutes to get desired Nitrogen purity.

So these units can be switched ON & OFF as per Nitrogen Demand changes.

High Reliability Very reliable for continuous and steady operation with constant Nitrogen purity.

Plant availability time is better than 98% always.

Molecular Sieves Life Expected Molecular sieves life is more than 10-years i.

e.

Whole life time of Nitrogen plant.

So no replacement costs.

Simple operation and maintenance All systems are designed by integrated solution for easy-operation and easy-maintenance.

Normal purity N2 generator main parts.

- - - -

Description | Type | Quantity | Remarks | PSA adsorption tower | Professional design | 2 pieces /10kg | Jiangyin Shuangqiu | CMS | MSC-3KT-172 | 1320kg | Japan Takeda/Wutian | Vortex airflow | Professional design | 2 pieces | Technical Carbotech from Germany | Self complement compact device | Professional design | 2sets | Jiangyin Tongyue | single unit processing part | / | 1 set | SMC-Japan | Sample pressure reduce valve | / | 1 piece | SMC-Japan | Direct current 24V power | / | 1 set | Taiwan-Mingwei | Pneumatic valves | DN80 | 5 pieces | Burkert Germany, approve | DN40 | 4 pieces | DN15 | 1 pieces | Magnetic valve | 4V210-24V | 10 pieces | Taiwan Airtac | Metal flow meter | LZZ-40 | 1 piece | Changzhou Shuanghuan | Control system | TPC7062K | 1set | (color touch screen )Kunlun Tongtai | Muffler | TY-300X | 1 set | Jiangyin Tongyue | Pipe valve system | bprofessional produce | 1 set | Jiangyin Tongyue | PLC controller | S7-200 | 1 set | Siemens Germany | Nitrogen analyzer | P860-3N | 1 set | Shanghai Changai | - - - -
