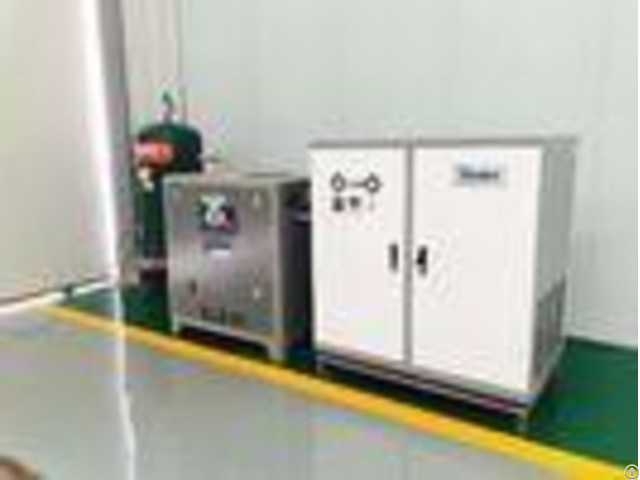

Removeable Nitrogen Generation Equipment With Color Touch Screen Control - China

Removeable Nitrogen Generation Equipment With Color Touch Screen Control - - - - Model: | TY5-39 | Nitrogen output Capacity | 5Nm3/H | Working Pressure: | 0.8Mpa(8bars) | Nitrogen Purity | 99.9%(vol) | Dew Point | (-)40 degree | Outlet Pressure | 0.1-0.65Mpa(adjust) | Working Voltage | 220V/50HZ/1KW | - - - - 2 - Working flow of PSA nitrogen Generator Working Principles PSA means Pressure Swing adsorption .

As we know there are about 21% oxygen and 78% Nitrogen in the compressed air .

When O2 &N2 passing through the carbon molecular Sieve(cms)bed at a certain pressure, The CMS will preferentially adsorb O2 than N2 - N2 will go through as a product gas at pressure while A tower is in the adsorption phase, B tower is de-pressuring at which time adsorbed O2 will be released to the atmosphere.

The A, B tower cycle is then repeated .

3 - Application Food packing, Food storing, Electric & Electronic industry, Petro-gas & Oil field, Chemicals & Petro-chemicals, Coal-mine, Metallurgy, Pharmacy, SMT, Fire-resistance, lab, Air driving, and so on.

1 - Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc.

Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.

2 - Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc.

Used in fields such as chemical, urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.

3 - Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products.

Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.
