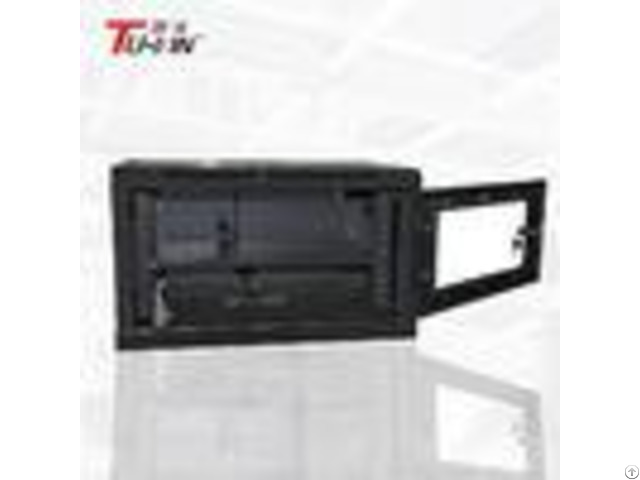

Small Wall Mount Network Cabinet Toughened Glass Door Radiation Protection - China

small wall mount network cabinet 19 Inch 600mm*450mm*6U Toughened Glass Door Features: # # Comply with ANSI/EIA;RS-310-D;IEC297- 2;DIN41491: PART1;DIN41494 : PART7;GB/T3047.2-92 standard; compatible with 19 international standard, metric system and EISI standard.

# # Advanced technology, precise size.

# Reliable structure, static loading capacity: 60KG.

# Quick and easy wall mounted, 19 standard installation inside.

# Can be flated pack, save transportation inside.

# 120mm size fan could be installed at top of cabinet.

# Cable entry from top and bottom.

# IP degree: IP20 - Surface finish: Degreasing, pickling, phosphating, powder coating.

Material and Thickness: Mounting profile: 1.5mm Others: 1.2mm Color: RAL9004(black) RAL7044(gray) - - - - Brand: | TUXIN | Column spacing: | 465mm (19 inch) | No: | TX-WF-6406 | Material: | SPCC cold rolled steel | Size: | 600mm*450mm*6U | Function: | Can install server equipment, the router, patch panel, KVM, UPS, Network device, etc.

| IOS test: | Pass ISO9001: 2008 Qualtiy System | Thickness: | Mounting Profile: 1.5mm, others: 1.2/1.0mm | Surface treatment: | Degreasing, pickling, phosphating, power coating, etc.

| Configuration: | Cage nuts and M6 screws: 10 sets.

| Standard: | Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491PARTI, DIN41494PART7, GB/T3047.2-92 standard; compatible with ETSI standard.

| Device Installation: | It is recommended to install network equipment/server device within 350 mm depth.

| - - - - Welded frame, stable structure with precise craftsmanship; Single section, compatiblewith 19"standard equipment; Tempered glass front door with over 180 turning degree; Removable side panel, easy to install and maintain (lock optional); Cable entry on the top cover and bottom panel with knock-out plate; L-shaped mounting profile, easy to adjustable on the mounting rail; Fan cutout on the top cover, easy to install fan; Swing back with over 90 turning degree; Various accessories for optional; - - - - Order Codes | Capacity | W*D*H(mm) | TX-WF-6404 | 4 | 600*450*220 | TX-WF-6606 | 6 | 600*600*358 | TX-WF-6409 | 9 | 600*450*492 | TX-WF-6612 | 12 | 600*600*625 | TX-WF-6415 | 15 | 600*450*730 | TX-WF-6418 | 18 | 600*450*820 | TX-WF-6422 | 22 | 600*450*960 | TX-WF-6427 | 27 | 600*450*1280 | - - - - Own products: # Cold Aisle # Mobile Server Rack # Computer Server Rack # 19 Inch Server Rack # Locking Network Cabinet # Standing Network Cabinet # Open Frame Rack # Wall Mount Server Rack # Wall Mount Data Rack # Wall Mount Network Cabinet # Power Distribution Unit # LCD KVM Drawer # 19 Inch Rack Accessories
