Tapered Thread Sucker Rod - China

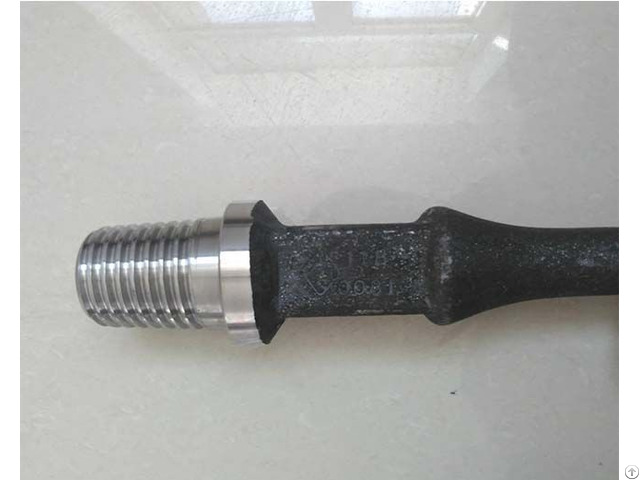

Tapered Thread Sucker Rod

It is a sucker rod designed specially for the PCP pump, and the taper thread is designed according to the drill pipe thread, which is applied to a high anti-twist thread on the rod thread.

Its characteristics are: 1 - It can withstand greater torque.

2 - Because the pitch is large and the tooth is wide, fastening and unfastening is fast.

3 - Prevent thread loosening.

Sucker Rod for sale

Tapered Thread Sucker Rod No.

Size Rod Diameter(mm) Threading Length of finished product

1 7/8" 22.23+0.2-0.41 NC12 8000 30FT

2 1" 25.4+0.23-0.46 NC16 7620 25FT

3 1-1/8" 28.58+0.25-0.51 NC16 1000 2FT

4 1-1/4 31.75+0.0-0.76 NC16 2000 4FT

5 1-1/2" 38.1+0.0-0.0.76 NC16 3000 6F Mechanical Properties Of Tapered Thread Sucker Rod Grade Minimum Yield Strength (0.2% Residual Deformation) Minimum Tensile Strength Maximum Tensile Strength Elongation 200mm% Reduction Of Area Z% Surface Hardness HRC Core Hardness HB Fatigue Life psi MPa psi MPa psi MPa ≥13 ≥50 ≥1.0X106

D 85000 586 115000 793 140000 965 ≥13 ≥50 KD 85000 590 115000 795 140000 965 ≥13 ≥50 HL 115000 795 140000 965 173339 1195 ≥13 ≥45 HY / / 140000 965 173339 1195 / / ≥42 ≥224
