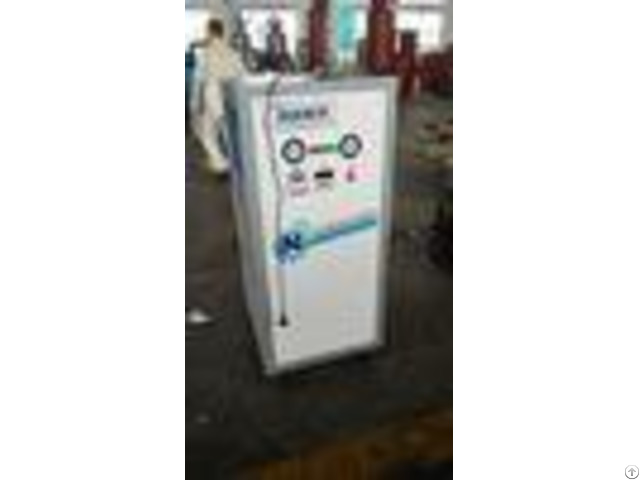

White Small Mobile Nitrogen Gas Generator Filling System 0 1 Kw Easyily Operating - China

White Small Mobile Nitrogen Gas Generator Filling System 0.1 Kw Easyily Operating - - - - Model: | TY3-39 | Nitrogen output Capacity | 3Nm3/H | Working Pressure: | 0.8Mpa(8bars) | Nitrogen Purity | 99.9%(vol) | Dew Point | (-)40 degree | Outlet Pressure | 0.1-0.65Mpa(adjust) | Working Voltage | 220V/50HZ/1KW | - - - - 2 - Working flow of PSA nitrogen Generator Working Principles PSA means Pressure Swing adsorption .

As we know there are about 21% oxygen and 78% Nitrogen in the compressed air .

When O2 &N2 passing through the carbon molecular Sieve(cms)bed at a certain pressure, The CMS will preferentially adsorb O2 than N2 - N2 will go through as a product gas at pressure while A tower is in the adsorption phase, B tower is de-pressuring at which time adsorbed O2 will be released to the atmosphere.

The A, B tower cycle is then repeated .

3 - Application Food packing, Food storing, Electric & Electronic industry, Petro-gas & Oil field, Chemicals & Petro-chemicals, Coal-mine, Metallurgy, Pharmacy, SMT, Fire-resistance, lab, Air driving, and so on.

1 - Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc.

Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.

2 - Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc.

Used in fields such as chemical, urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.

3 - Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products.

Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.

- - - - Factory name/address | Manufactured item | annual production capacity | Jiangsu Tongyue Gas system Co., Ltd 2030 Zhengcheng Road, Xishiqiao Town, Jiangyin City | pressure swing adsorption nitrogen geneerator | 350 sets/year | | Ammonia decomposition hydrogen production equipment | 300 sets/year | | methanol reforming hydrogen | 50 sets/year | | other gas equipment | 90 sets/year | | | | - - - - Introduction: N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 )is bigger than the quadrupole of O2 (0.10 ), the adsorption capacity by molecular sieve to N2 is stronger than O2 - When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve, the N2 gas is absorbed and O2 is obtained by separation.

The main part of O2 generator is two towers filled with molecular sieve, when the compressed air get into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .

When one tower produces N2, another tower release the N2 by reducing the pressure to get the renewable desorption of carbon molecular sieve.

Two towers alternate adsorption and regeneration to output N2 continuously.
