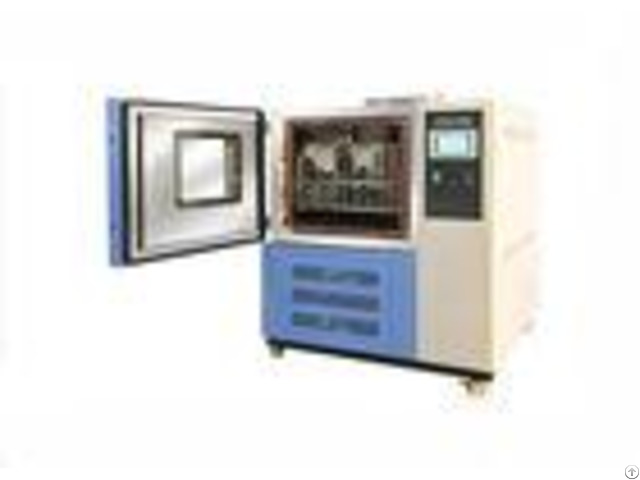

Astm1149 Environmental Test Chamber Ozone Testing Equipment With 4 Casters - China

Environmental Ozone Resistance Dynamic/Static Ozone Climatic Aging Testing Equipment Chamber with Rubber Corrosive Testing Description Plastic Ozone Aging Test Machine Supplier is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test.

Ozone content in the atmosphere is very low, but it is the main factors of polymer materials aging.

Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time.

The steady of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antioxidant protection efficiency method, and then take effective aging proof measures to improve the service life of rubber products.

Many test methods exist for testing rubber in the form of ASTM, BS or ISO standards.

Here materials are placed in a chamber containing an ozone-rich atmosphere for a period of time, after which they are assessed for damage or tested for physical properties such as strength.

Ozone Resistance Tester simulates and strengthens the conditions of ozone, study the effects of ozone on rubber, and then take effective anti-aging measures to improve the life of rubber products.

Specifications - - - - Workroom Sizes W*D*H (cm) | 50x40x50 | 50x50x60 | 50x60x75 | 60x80x85 | 80x100x100 | 100x100x100 | Outer dimension W*D*H(cm) | 85x95x140 | 98x115x150 | 95x115x165 | 105x135x175 | 145x135x190 | 155x150x195 | Temperature Range | 0C-70C | Temperature Fluctuation | 0.5C(standard)/0.2C(optio nal) | Temperature Evenness | 2C | Temperature Deviation | 1C | Accuracy | 0.1C, 1.5%R.

H (standard)/0.01, 1.5%R.

H(optional) | Humidity Range | 45%~95%R.

H | Humidity Deviation | 2% R.

H | Temperature Rise Speed | 0.7C~1C/min | Temperature Down Speed | Ambient temperature ~ 0 within 20 min.

| The machine noise | 72 dB(A) | Equipment installed power | ~4KW | ~4.5KW | ~4.5KW | ~6.5KW | ~7KW | material | Inner chamber: # SUS 304 stainless steel | The outer wall: baked coating steel plate with plastic spray/#SUS304 | Timing range | 0~9999hours | Ozone concentration | 0~10000PPHM (Adjusted) | Air flow speed | 8-16mm/S | Sample holder rotate speed | 1 r/min (adjustable) | Clamps tensile stretch | 5%~35% | Max.

ozone concentration | N120gO3/m | Ozone output | 3.5gO3/h ((oxygen input, flow rate 100L/h) | Standard | ASTM D 1149 | Power & voltage | AC 380V 50HZ | Working condition | Environmental temperature: 5~30, environmental humidity: 85%R.

H Please put things 80cm away from the ozone test chamber.

| - - - - Features 1 - Test area and sampler holder Ozone test chamber is for testing of elastomers.

Test area is made of stainless-steel.

Equipped with dynamic sample holder.

Optional holder is static sample holder.

2 - Ozone generator Ozone test chamber equipped withozone generator to supply ozone gas.

Automatic control and supply ozone gas.

Ozone concentration: 1~1000PPHM (Adjusted).

3 - Control Operation Programmable color display touch screen controller Program: 100 groups in 999 sections R-232 interface PC Link with software.

Control Temperature, humidity and Ozone concentration on controller.

Turning the round button to control holder rotate speed and clamps tensile stretch 4 - Ozone Exhaust Device After completed Ozone testing, click "Exha" button to exhaust ozone from test area to this exhaust device.

This absorbs ozone, to make workplace clean and safe.

Standard JIS K 6259, ASTM1149, ASTM1171, ISO1431, DIN53509, GB/T13642, GB/T 7762-2003, GB 2951
