Bifma X5 2 Chair Swivel Durability Testing Machine With Micro Computer Controller - China

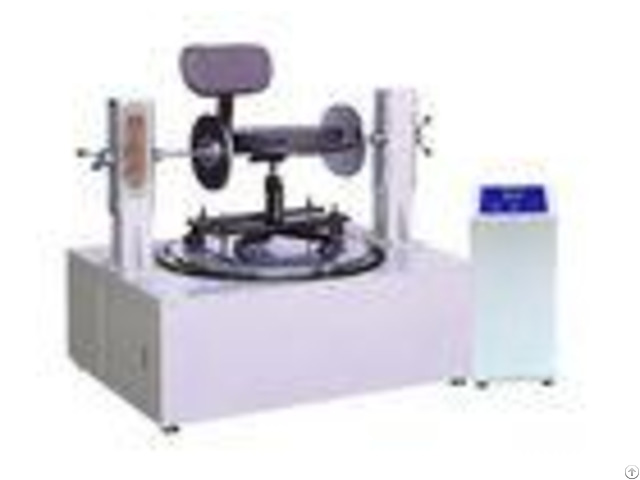

Bifma X5.2 Chair Swivel Durability Testing Machine With Micro Computer Controller Applications Chair Swivel Durability Testing Machine is used for seating furniture, with load pad and accessories for the fixing of the chair, acc.

to DIN 4551, EN 1335, NEN 1812 and BIFMA 5.2 - It is used for office chairs, stools, gas springs, tested units are subjected either to the entire test procedure prescribed by the standards or to selected individual tests.

The test axes each have their own controllers assembled in the immediate vicinity, which are operated from a Touch panel and controlled by PLC.

Main parts # 1 test frame # 1 swivel test rig, driven electrically # 1 actuator load controlled, piston diameter 80mm, piston stroke 500mm, 2500N # 1 load pad, diameter 200mm in acc.

to DIN EN 1335 with cardanic clamping connection # 1 range of standard fixing elements # 1 load cell 5kN - 1 set of stops, clamps Specifications - - - - Rate of revolution | up to 6 times/min (optionally: other rates) | Turning angle | up to +/- 360 | Loads | up to 2500 N (cylinder 80 mm) | Number of cycles | 1 500, 000 | Single cycle times | 0.1 600 seconds | Air pressure | 8 bar | Consumption | up to 800 l/min | Input control unit | 380 V / 50 Hz | Dimensions of test rig | 1260 x 1260 x 2000 (L x W x H) | Weight | 300 kg | - - - - Standards EN 1728-2012 Section 6.6, 6.8, 6.9, 6.11, 6.12, 6.13, 6.14, 6.18, 6.20, 6.21, 6.22, 7.4, 7.5, 7.6, 7.8, 7.10, 7.12 EN1335-3 -2009 Section 7.2.1, 7.2.3, 7.2.4, 7.2.6, 7.3.2, 7.3.4, EN 1729-2-2012 Section 5.3.4, 5.3.9, 5.3.11, 5.3.12 EN581-2-2015 (corresponding with EN1728-2012), ISO 7173-1989 Section 7.1, 7.4 GB/T 10357.3 Section 4.3.3, 4.4, 4.6, 4.9, QB/T 2280-2007 Section 6.6.5, (6.6.13.2 Load pad(optional accessory) is required) BIFMA X5.1 - 2011 Section 21, (11.4, 19, 20, 23, 24 Load pad(optional accessory) is required( EN 16139-2013 (corresponding with EN1728-2012) BS5459-2-2000 Section A5.5, A7.3 Features 1 - The main structure of the machine is made of aluminum, beautiful and easy to maintain.

2 - Servo motor drive, test load control more accurate, and the noise is even smaller.

3 - PLC touch screen control, operation more convenient.

4 - In addition, the machine loading device using electric control movements, more extensive test space.
