Iec Astm Stability Hot And Cold Thermal Shock Test Equipment Electronic Load - China

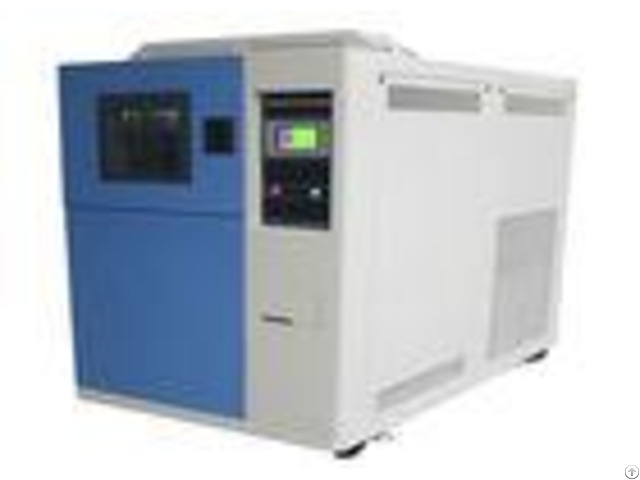

Environmental Stability Hot And Cold Thermal Shock Test Chamber Temperature Climatic Testing Description Thermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.

Testing box is divided into two parts, one is high-temperature zone, another is low-temperature zone, the testing samples are placed in the moving basket, using unique heat storage and cool storage, the cylinder taking basket moves up and down in hot zone and cold zone to complete the extremely high and low temperature impact testing.

Specifications - - - - Model | GAG-42 | GAG-60 | GAG-80 | GAG-100 | GAG-120 | GAG-150 | Inner size: WHD(cm) | 40*35*30 | 50*30*40 | 50*40*40 | 50*50*40 | 60*40*50 | 60*50*50 | External size: WHD(cm) | 150*180*150 | 160*175*160 | 160*185*160 | 160*185*170 | 170*185*170 | 170*195* 170 | Temperature range(Test Chamber) | high temperature: +60C~+200C;lo w temperature -10C~-65C(A: -45C;B: -55C;C : -65C) | Heating Time | RT~200C About 30min | Cooling Time | RT~-70C About 85min | Temperature Conversion Time | Less than 10S | Temperature Recovery Time | Less than 5min | Temperature Deviation | 2.0C | Temperature Fluctuation | 0.5C | Material | External material: SUS#304 Stainless steel plate Internal material: SUS#304Stainless steel plate | Output Mode | Water-cooled or air-cooled, Tecumseh compressor in France | Controller | TEMI South Korea | Cooling System | Water-cooled or air-cooled, Tecumseh compressor in France | Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system | Parts | Watching window;50mm testing hole; partition plat | Power | AC380V 50/60Hz Three-phase four-wire ac power | weight (kg) | 750 | 790 | 830 | 880 | 950 | 1050 | Customized service | Welcome to Non-standard, Special requirements, OEM/ODM orders.

| - - - - Features 1 - Highly accurate temperature recovery 2 - 1000 cycles continuous operation (option: defrost-free operation) 3 - Accurate and dependable test result (option: product temperature control*) 4 - Monitoring product temperature (option: product temperature monitor with trigger function) 5 - Patent parallel refrigeration system improves reliability 6 - Automatic setting of pre-cooling and pre-heating in energy saving, Eco operation mode 7 - Minimizing defrosting burden with defrost-free operation (option: defrost-free operation) 8 - Parallel refrigerator control system for energy-saving control Standard - - - - MIL-STD-883E Method 1011.9 Thermal Shock MIL-STD-202G Method 107G thermal Shock JIS C 0025 Change of temperature IEC 61300-2-47 Tests-Thermal Shocks JESD22-A104C Temperature cycling GB/T 2423.22-2012 Test N: Change of temperature | - - - -
