Programmable Mattress Fabric Formaldehyde Testing Equipment 86 106kpa Pressure - China

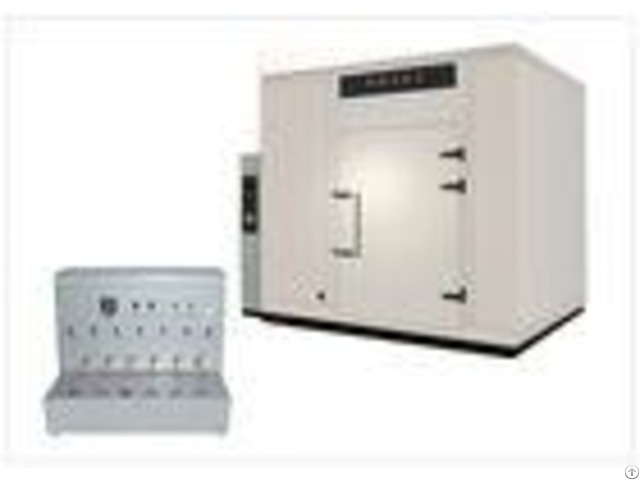

Programmable Automatic Mattress Formaldehyde Test Chamber For Fabric Formaldehyde Testing Description Mattress Formaldehyde Climate Test Chamber can provide standard test environment (such as a specified temperature, relative humidity, air exchange rate and air flow rate) or simulate real indoor environment and test a variety of materials and products indoor pollutant release and release characteristics.

The machine compliance with E1333-96, ASTM D 6007-02, ENV 717-1, GB 18580-2001 standards.

Mattress Formaldehyde Climate Test Chamber is also known Indoor Formaldehyde Tester; this type of product has the following features: 1 - To simulate the real environment by development and validation of indoor air pollution forecasting model.

2 - According to data or predictive models of indoor pollutants in indoor air (IAQ) for estimation and determination.

3 - Identify environmental variables on material and product release rate and characteristics.

4 - According to the release characteristics of materials and products ranking with graded.

Specifications - - - - Product Model | GAG-6755-50 | GAG-6755-100 | GAG-6755-250 | GAG-6755-500 | GAG-6755-1000A | GAG-6755-1000B | GAG-6755-2000 | Volume of chamber(WDH) cm | 56*30*30 | 63*40*40 | 70*60*60 | 102*70*70 | 158*80*80 | 91*100*110 | 200*110*90 | Environmental temperature | 5~ 35C | Environmental humidity | 90% R.

H | Requirements for Environmental | Cleanliness No pollutant source in the surrounding environment TVOC 500g/m | Adjustable range of temperature | 10~ 40C high temperature cleaning 250C | Adjustable range of humidity | 40~70%R.H.(20C ~30C ) | Pressure | 105pa | Temperature fluctuation | 0.3C ( Fluctuation) | Temperature deviation | 0.5 C ( Deviation) | Humidity fluctuation | 2.5%R.

H | Humidity deviation | 3% | Air exchange rate | 0.2~2/h5% ( Optional 0.2~3/h5%) | Air velocity | 0.1m/s 0.3m/s ( Range) | Power | Alternating current 380V/50HZ three-phase power supply 4/5 wiring system | Starting power | 5kw | 6kw | 8kw | 10kw | 15kw | 15kw | 20kw | Operating power | 3kw | 3.4kw | 5kw | 6kw | 7kw | 7kw | 9kw | Rate of recovery | Formaldehyde, octanol, 4 phenyl Cyclohexene, dodecane and tetradecane have a recovery rate larger than 80% | Clean air system | Standard configuration | Background concentration of VOC | Single VOC has a concentration smaller than 2g/m, T VOC 20g m dust filtrated TVOC has a concentration smaller than 20g/m | - - - - Features 1 - 8 imported LCD touch controller.

2 - Three sections: High-temperature chamber, low-temperature chamber, testing chamber.

3 - High formula memory capacity can store 120 patterns, 9999 cycles, setting time for each pattern is 9999 Hrs 59 Mins.

4 - RS-485 communication interface device, capable of connecting with computer.

5 - Choose 2 zone/3 zone shocks.

7 - Automatically alarming and shutting down device.

8 Touch screen controller 8 - Adopt binary cooling system, with quick cooling effect.

Cooling method is water cooling.

Standard - - - - ASTM D6007- 02 Standard Test Method for Determining Formaldehyde Concentration in Air from Wood Products Using a Small Scale Chamber | ASTM E1333 - 14 Standard Test Method for Determining Formaldehyde Concentrations in Air and Emission Rates from Wood Products Using a Large Chamber | NF EN 717-1-2005 Wood-based panels - Determination of formaldehyde release - Part 1 : formaldehyde emission by the chamber method.

| EN ISO 16000-9-2006 Indoor air - Part 9: Determination of the emission of volatile organic compounds from building products and furnishing - Emission test chamber method Incorporating corrigendum December 2007 | LY/T 1612-2004 The climate chamber for determination of formaldehyde emission | HJ 571-2010 Technical requirement for environmental labeling products Wood-based panels and finishing products | HJ 566-2010 Technical requirement for environmental labeling products Wooden toys | HJ/T 400-2007 Determination of Volatile Organic Compounds and Carbonyl Compounds in Cabin of Vehicles | GB/T 17657-2013 Test methods of evaluating the properties of wood-based panels and surface decorated wood-based panels | GB 18580-2017 Indoor decorating and refurbishing materialsLimit of formaldehyde emission of wood-based panels and finishing products | GB 18584-2001 Indoor decorating and refurbishing materials--Limit of harmful substances of wood-based furniture | GB 18587-2001 Indoor decorating and refurbishing materials-Limitations of harmful substances emitted from carpets, carpet cushions and adhesives | - - - -
