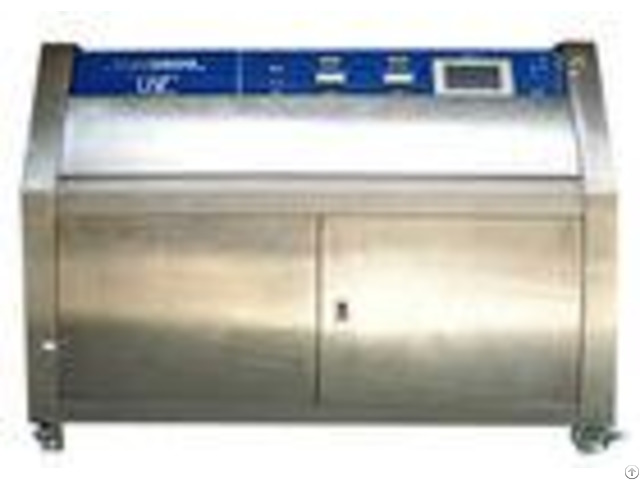

Rubber Uva Uvb Aging Test Machine Accelerated Weathering Chamber Astm D1148 - China

ASTM D1148 Rubber UV Aging Chamber Accelerated Weathering Environmental Simulation Material Testing Description UV Weathering Test Machine, simulates damaging effects of long-term outdoor exposure of materials and coatings by exposing test samples to varying conditions of the most aggressive components of weathering - ultraviolet radiation, moisture, and heat.

A UV accelerated weathering chamber uses fluorescent lamps to provide a radiation spectrum centered in the ultraviolet wavelengths.

Moisture is provided by forced condensation, and temperature is controlled by heaters.

The Test Machine is the world's most widely used, can be used in more labs throughout the world than any other accelerated weathering tester.

It's used widely in the industry, such as printing ink, paint, plastics, print, packaging, motor van, metal, electron, medical, and so on.

Specifications - - - - Model | GAG-5152 | GAG-5152 -1 | Internal dimensions (mm) | 450*1170*500 | 450*1170*500 | Overall dimensions (mm) | 580*1280*1350 | 580*1280*1350 | Temperature range | Ambient~90C | Ambient~90C | Humidity range | 95%R.

H | 95%R.

H | Water Spray | Spraying water | Spraying water | BPT | 30~70C | 30~70C | Irradiance range | N/A | 0.5 ~ 20 W/m2 | Distance between Specimen and lamp | 50mm | 50mm | Test specimen capacity | Can hold 40 pieces of specimens (individual specimen size is 75mm * 150mm ) | Can hold 40 pieces of specimens (individual specimen size is 75mm * 150mm ) | UV wavelength | 320nm~400nm UV-A | 320nm~400nm UV-A | 280nm~320nm UV-B | 280nm~320nm UV-B | Lamp power | 40W/unit, 8Pcs with unit chamber | 40W/unit, 8Pcs with unit chamber | Power Supply | 380V 50HZ; | 380V 50HZ; | Power | 4.0(KW) | 4.3(KW) | - - - - Features 1 - The UV Accelerated weathering Test Chamber simulates effects from outside humidity; 2 - Test exact temperature by black panel temp.

sensor, it can repeat the tested result; 3 - Cycling test for humidity, condensation, and spray available; 4 - Calibrator resource and auto calibrated program for the radiancy; 5 - Test samples: 24pcs for each at 75mm*300mm, 48pcs for each at 75mm*150mm (for Tower-type only).

Standard - - - - ASTM D4329 | ISO 4892-3 | ISO 11507 | SAE J2020, | GB/T14552-93 | GB/T16422.3-1997 GB/T16585-96 | GB/T16585-1996 | GB/T16422.3-1997 | - - - - Applicable Industries The Test Chamber is the world's most widely used weathering tester to test types of damages include color change, gloss loss, chalking, cracking, crazing, hazing, blistering, strength loss and oxidation.

This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.

Application: paints, coating & inks, plastic, printing package, aluminium material, adhesive, auto & motorcycle, cosmetic, metal, electronic, electroplate, pharmaceuticals and so on.
