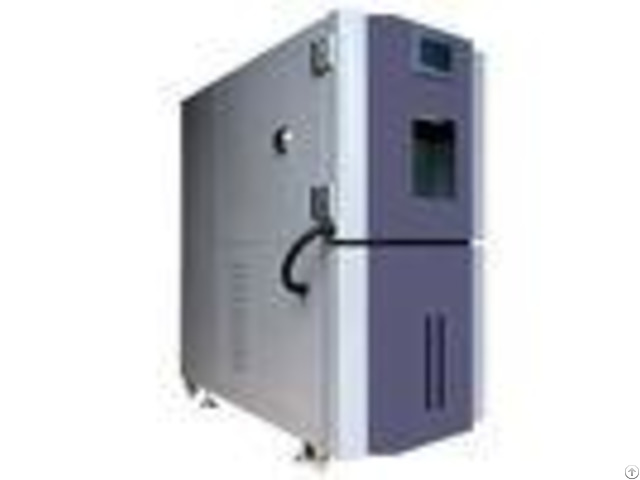

Sus304 Simulation Benchtop Environmental Chamber With Programmable Control System - China

SUS304 Simulation Environmental Test Chamber With Programmable Temperature Humidity Control System Description Constant Temperature Humidity Chamber, Temperature And Humidity Chamber are for testing material heat, cold, dry resistance, humidity resistance.

Suitable for electronics, electrical appliances, Communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.

Specifications - - - - Model | GTH-100 | GTH-150 | GTH-225 | GTH-408 | GTH-800 | GTH-1000 | Inner Chamber Size W*H*D(cm) | 40*50*50 | 50*60*50 | 60*75*50 | 80*85*60 | 100*100*80 | 100*100*100 | External Chamber Size W*H*D(cm) | 90*142*100 | 100*152*113 | 110*167*113 | 130*177*123 | 150*192*144 | 150*192*163 | Inner Chamber Volume | 100L | 150L | 225L | 408L | 800L | 1000L | Temperature Range | -70C~+150C(180C) (A: -20 B: -40 C: -60 D: -70) (Optional) | Humidity Range | 20%~98%R.H. | Standard accessories | Sight window*1, cable port(port50mm)*1, shelves*2, chamber lamp*1, power cable *2m | Safety device (standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, Over temp.

protect, | - - - - - - - - over load protect of blower, dry heat protection | Control System | Balanced Temperature & Humidity Control System | Refrigeration system | Air Cooled (Water Cooled Type is optional) | Controller | Panel: 7-inch LCD Touch panel | Operation modes: program or setting | Memory capacity : 120 programs, 1200 steps, | All repeat 999 cycles, part repeat 99 cycles | Temp.

constancy | 0.5C | Humidity constancy | 2.5%R.

H | Temp.

uniformity | 2.0C | Interior material | Stainless Steel Plate(SUS 304) | Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | Ambient Temp.

| +5C+35C | Power Supply | AC 38010% 50Hz, 3 phase 4 wires + Ground Wires | Remark: Customized sizes and configurations are available | - - - - Standard Reference: - - - - GB11158 | GB10589-89 | GB10592-89 | GB/T10586-89 | GB/T2423.1-2001 | GB/T2423.2-2001 | GB/T2423.3-93 | GB/T2423.4-93 | GB/T2423.22-2001 | IEC60068-2-1.1990 | MIL-STD-810F-507.4 | MIL-STD883C 1004.2 | JIS C60068-2-3-1987 | IEC68-2-03 | ASTM D1735 | JESD22-A101-B-2004 | JESD22-A103-C-2004 | JESD22-A119-2004 | - - - -
