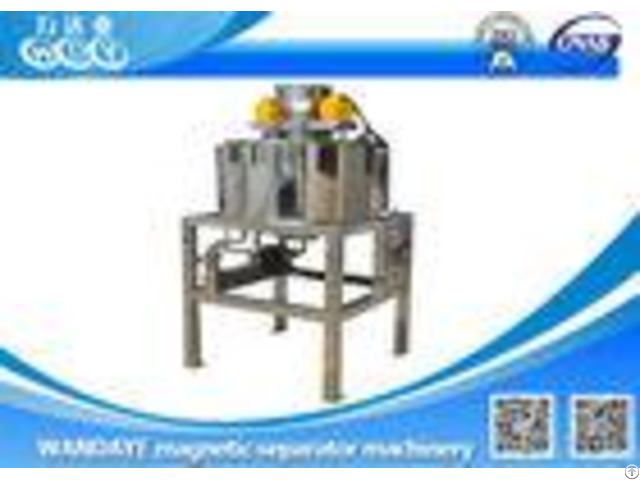

3t 380acv 20dca Electromagnetic Separator For Quartz Beneficiation - China

3T 380ACV 20DCA Eletromagnetic separator for Dried-powder water and oil double cooling Product characteristic A newly development machine.

Large wrap angle and multi-magnetic-pole.

Easier to discharge the iron.

Operation process Feed the dry powder from the hopper, make the separator state at the magnetizing and run a vibrator at this time.

After a period, stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge.

Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.

Application scope Electromagnetic dried-powder separators are applied in process the fine mineral particle, and suitable for using at the drought and water shortage area.

For example: Kaolin Beneficiation, Sodium potassium feldspar Beneficiation, Quartz Beneficiation, Polarity powder material Beneficiation, pharmacy treatment, activepharmaceuticalingre dient(API)treatment, paper pulp treatment, fiberstufftreatment, organicchemicalindustry and related equipment, Fine chemicals and related equipment.

Technical parameter - - - -

- - - - - - - - Model | 3A160 | 3A220 | 7A300 | 11A430 | 15A220 | 20A600 | Magnetic field strength(T) | 2 | 2 | 3 | 3 | 5 | 3 | Input voltage(ACV) | 380 | 220 | 380 | 380 | 380 | 380 | Maximum output current(DCA) | 15 | 7 | 20 | 20 | 30 | 40 | Maximum coil power(KW) | 3 | 3 | 7 | 11 | 15 | 20 | Insulation method | E | E | E | E | E | E | Cooling method | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | Magnetic lumen diameter(mm) | 160 | 220 | 300 | 430 | 220 | 600 | yield(T) | 0.5-1.5 | 1-3 | 1.5-4 | 1.5-6 | | | dimension(mm) | 700*700*1450 | 860*860* 1540 | 1320*1320* 2500 | 1500*1500* 2500 | 1350*1100*1850 | 1500*1500*2000 | Main machine weight (KG) | 450 | 490 | 1020 | 1210 | 1500 | 2000 | Usage | Applicable for 60-300 mesh feedstock of iron elimination | - - - -
