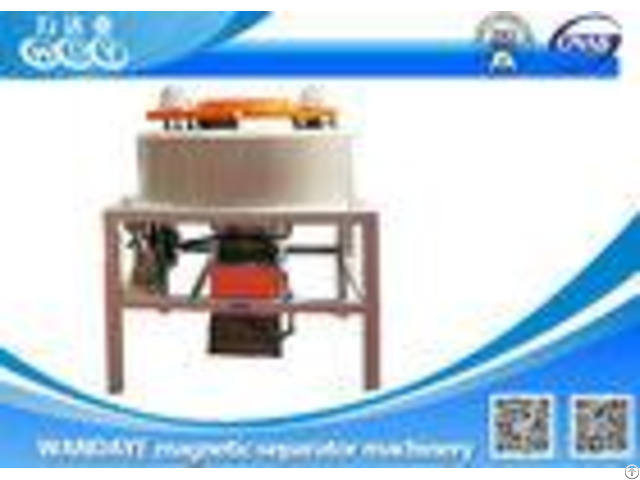

3t 40dca Electromagnetic Separator Non Metallic Mineral Iron Remover For Dried Powder - China

3T 40DCA Eletromagnetic separator Non-metallic mineral iron remover for Dried-powder Product characteristic Electromagnetic dried-powder separator is a newly development machine.

The characteristics of magnetic system are large wrap angle, multi-magnetic-pole.

The absolute value of magnetic flux density of separation area is evenly.

We can design different magnetic field intensity as the property of raw ores.

Also, dried-powder separator doesnt need to come over the gravity and resistance of the raw material.

When the nonmagnetic minerals break away from the magnetic field, it can depart from the magnetic cylinder very well.

With the mechanical vibrating equipment, it not only can improve the efficiency of iron remove but also can be easier to discharge the iron.

Operation process Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator.

After a period, stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge.

Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.

Application scope Electromagnetic dried-powder separators are applied in process the fine mineral particle.

The magnetic fine ferrous mineral particle such as hematite, martite, limonite, siderite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin.

Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.

For example: Kaolin Beneficiation, Sodium potassium feldspar Beneficiation, Quartz Beneficiation, Polarity powder material Beneficiation, active pharmaceutical ingredient(API)treatment, antibiotics treatment, fiber stufftreatment, organicchemicalindustry and related equipment, Fine chemicals and related equipment.

Technical parameter - - - - Model | 3A160 | 3A220 | 7A300 | 11A220 | 11A430 | 15A220 | Magnetic field strength(T) | 2 | 2 | 3 | 3 | 3 | 5 | Input voltage(ACV) | 380 | 220 | 380 | 380 | 380 | 380 | Maximum output current(DCA) | 15 | 7 | 20 | 20 | 20 | 30 | Maximum coil power(KW) | 3 | 3 | 7 | 11 | 11 | 15 | Insulation method | E | E | E | E | E | E | Cooling method | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 220 | yield(T) | 0.5-1.5 | 1-3 | 1.5-4 | 0.5-3 | 1.5-6 | | dimension(mm) | 700*700*1450 | 860*860* 1540 | 1320*1320* 2500 | 1300*1100* 1800 | 1500*1500* 2500 | 1350*1100*1850 | Main machine weight (KG) | 450 | 490 | 1020 | 1130 | 1210 | 1500 | Usage | Applicable for 60-300 mesh feedstock of iron elimination | - - - -
