Automatic Paper Cup Die Cutting Machine Mr-850e - China

price: 20000.00 Dollar US$

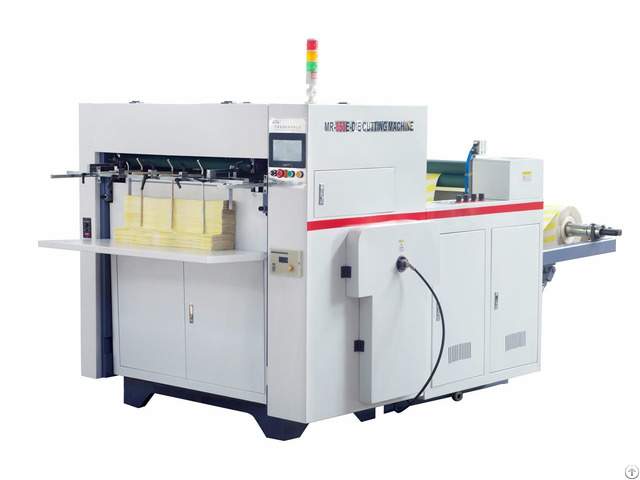

Automatic Paper Cup Die Cutting Machine Mr-850e

Products Photos Catalog Paper Cup Die Cutting Photos Catalog

Introduction:

This machine is special for press cutting all kinds of ordinary paper rolls, PE coated paper rolls, etc.

It is suitable for paper cup making, printing, packaging and other paper container product industries.

Paper rolls under the traction of servo motor, into flat die cutting device, the amount of input can be set up through the screen, convenient and accurate, all kinds of plain paper and printing paper can be cutting.

Characteristics:

1 - Dustproof device: To ensure the oil groove is clean and avoid the abrasion or damage of spare parts caused by oil block.

2 - Adjust the paper by motor, become more convenient.

3 - Manual rectify a deviation, automatic oil supply, automatic oil lubrication.

4 - Pneumatic cutting board locking system: automatically lock precision ±0.15mm, reduce working intensity.

5 - Temperature control and protect system: automatically shutdown to protect equipment.

6 - Manual/automatic pressure adjustment system: be more convenient to operate and reduce more working intensity.

Specifications:

Model MR-850E

Cutting size 850x280 mm

Die cutting speed 100-180 times/min

Precision ±0.15mm (manual or pneumatic lock the cutting board)

Die cutting press 100T

paper material square weight 135-400gsm

Width of paper material 250-860mm

Max.

paper roll diameter ≤1400mm

Paper roll Specification 3“/6“/12“

Die cutting air pressure 0.5Mpa

Power supply 5.5kw, 380v, 3 phases, 50Hz

Overall size 2500x1700x1750mm

Weight 3500kg

Work noise ≤100db

Tel/whatsapp: +86 18267828120

Email: joentsai@hotmail .

com


Company Contact:


  • Phone: +86 18267828120

  • Address: No.666 Zhengsong Avenue, Wanquan Town, Pingyang County, Wenzhou , Zhejiang Province, China

  • Email: Email


Published date: February 21, 2017 - Modified date: February 21, 2017

  • Business Description: Pingyang Mingrui Machinery, manufacturing and selling automatic paper cup die cutting machine, automatic paper box creasing and die cutting machine, paper lunch box making machine etc.

    with high quality and low price.

    Welcome to contact details.
