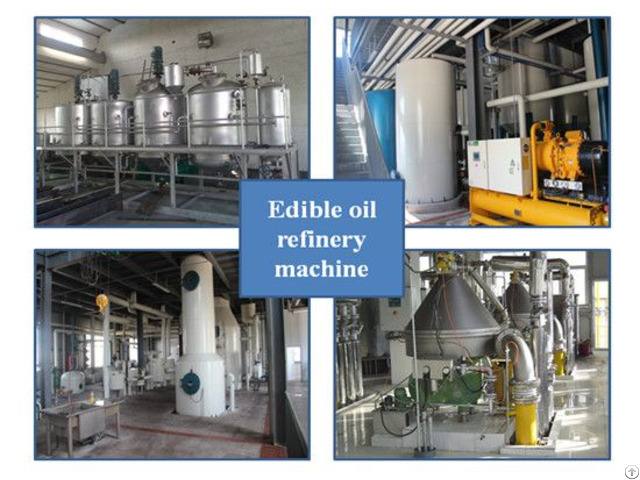

Cooking Vegatble Edible Oil Refinery Plant - China

Edible Oil Refinery : Cooking Oil Refinery : Vegetable Oil Refinery



Edible Oil Refinery and Edible Oil Refining have been the areas of excellence for Tinytech Udyog.

We are the basic designers, manufacturers and exporters of complete Edible Oil Refinery Plants to refine the crude oil and make it pure edible.

Tinytech Udyog manufactures unique edible oil refinery with complete unique construction.

Our refinery plants are specifically designed to give the minimum operation costs and maximum output results.

The edible oil refinery can refine almost all types of oils.

The refined oil quality depends on the type of crude oil and its chemical structure.

So far, we have exported our refinery plants to 25 countries of the world.

Process Description of Edible Oil Refinery :

For refining the edible oil, there are three basic processes in the refinery.

First process is neutralizing the oil in the neutralizer to remove the Free Fatty Acids (FFA) by adding caustic soda.

Oil is heated up to about 60°C by thermic fluid coils and oil is stirred by stirrer.

Then soap stock formed due to chemical reaction is allowed to settle at the bottom of the neutralizer from where it is taken out into soap pan.

Neutralized oil is drawn into the second vessel called bleacher where color of oil is removed by bleaching process with aid of chemicals such as carbon black and bleaching earth.

Oil is generally heated up to 110°C by thermic fluid coils.

Stirring is also continued.

Bleaching process is done under vacuum.

Bleached oil then goes to the filter press where bleaching earth and chemicals are separated and clean bleached oil is then drawn to deodorizer where oil is heated above 110°C through thermic fluid coils and then live steam is given to the oil from the bottom steam nozzles and temperature of oil is raised up to 200 to 220°C through thermic fluid coils.

Entire process is done under high vacuum.

Thus smell is removed from the oil in the deodorizer.

Then it goes to cooler where water circulating coils take away heat and oil is cooled.

Again it goes to second filter press where completely refined and transparent color less oil is obtained.

Thermic Fluid Boiler, Vacuum Pump, Barometric Condenser, Catchalls, Steam Generator etc.

play their role in the refining process.

So these equipments are part of the refinery and connected with the vessels through pipelines.
