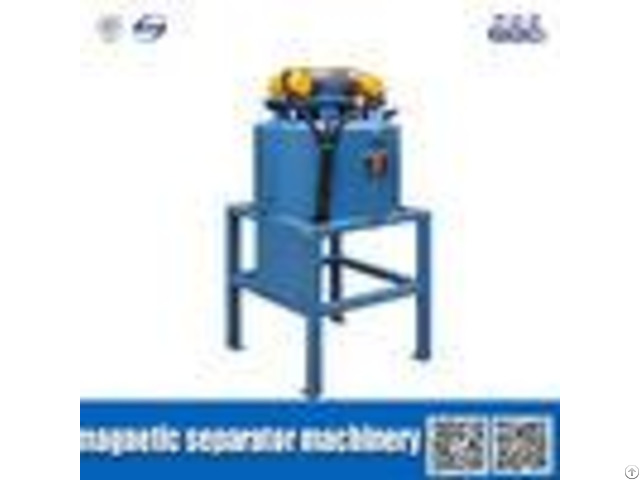

Hematite Limonite Siderite Dry Magnetic Separator Appproved Iso9001 - China

Dry Magnetic Separator Eletromagnetic for Powder 2T 380ACV Insulation method E Product characteristic Can design different magnetic field intensity as the property of raw ores.

Doesnt need to come over the gravity and resistance of the raw material.

With the mechanical vibrating equipment Efficiency of iron remove Easier to discharge the iron Operation process Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator.

After a period, stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge.

Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.

Application scope Electromagnetic dried-powder separators are applied in process the fine mineral particle, the magnetic fine ferrous mineral particle such as hematite, martite, limonite, siderite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin.

Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.

For example: Kaolin Beneficiation, Sodium potassium feldspar Beneficiation, Quartz Beneficiation, Polarity powder material Beneficiation, pharmacy treatment, active pharmaceutical ingredient(API)treatment, antibiotics treatment, paper treatment, paper pulp treatment, fiber stufftreatment, organicchemicalindustry and related equipment, Fine chemicals and related equipment.

Technical parameter - - - - Model | 3A220 | 7A300 | 11A220 | 11A430 | 15A220 | 20A600 | Magnetic field strength(T) | 2 | 3 | 3 | 3 | 5 | 3 | Input voltage(ACV) | 220 | 380 | 380 | 380 | 380 | 380 | Maximum output current(DCA) | 7 | 20 | 20 | 20 | 30 | 40 | Maximum coil power(KW) | 3 | 7 | 11 | 11 | 15 | 20 | Insulation method | E | E | E | E | E | E | Cooling method | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | Magnetic lumen diameter(mm) | 220 | 300 | 220 | 430 | 220 | 600 | yield(T) | 1-3 | 1.5-4 | 0.5-3 | 1.5-6 | | | dimension(mm) | 860*860* 1540 | 1320*1320* 2500 | 1300*1100* 1800 | 1500*1500* 2500 | 1350*1100*1850 | 1500*1500*2000 | Main machine weight (KG) | 490 | 1020 | 1130 | 1210 | 1500 | 2000 | Usage | Applicable for 60-300 mesh feedstock of iron elimination | - - - -
