High Efficient Wet Magnetic Separator Metal Separation Equipment With Iso9001 - China

price: 1100.00 Dollar US$

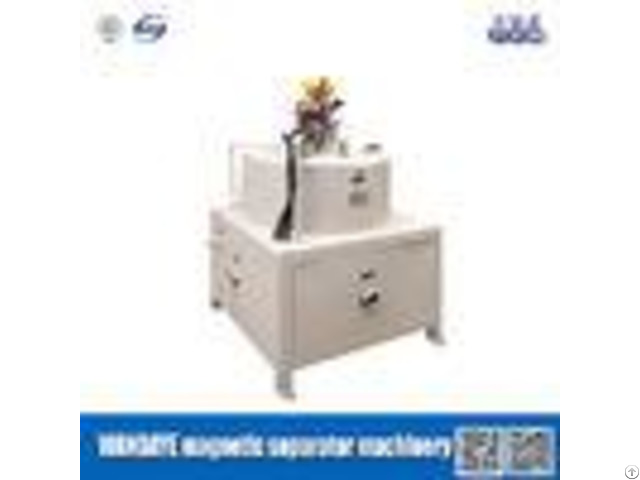

High Efficient Wet Magnetic Separator Metal Separation Equipment With Iso9001

Products Photos Catalog Wet Magnetic Separator Photos Catalog

350ACV 55DCA Eletromagnetic Separator Automatic for Slurry 3T coil power 18.5KW Operation process 1, power on, then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.

2, After a few minutes later(you can set the time what you like depending on yourself condition), close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.

Product characteristic The magnetic field distribute evenly An obvious efficiency in iron remove.

Applying water to cool the machine Enhanced the life span of the coil.

Brake valve applying the import material.

Technology parameter of contrast - - - - Model | 1.5A160 | 3A89 | 3A190 | 7A250 | 7A300 | 11A250 | 20A400 | Magnetic field strength(T) | 2.5 | 2.5 | 2 | 3 | 3 | 3.5 | 3.5 | Input voltage(ACV) | 220 | 380 | 220 | 380 | 380 | 380 | 380 | Maximumoutput current(DCA) | 10 | 7 | 7 | 20 | 20 | 20 | 25 | Maximum coil power(KW) | 1.5 | 3 | 3 | 7 | 7 | 11 | 20 | Insulation method | E | E | E | E | E | E | E | Cooling method | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | Water and oil double cooling | Magnetic lumen diameter(mm) | 160 | 89 | 190 | 250 | 300 | 250 | 400 | Pipe size(mm) | 50 | 50 | 50 | 89 | 89 | 89 | 89 | yield(m/h) | 3-10 | 0.1-0.5 | 5-10 | 10-30 | 15-30 | 10-30 | 20-60 | dimension(mm) | 946(H) | 500*500* 1000 | 860*860* 1540 | 1200*1200* 1850 | 1200*1200* 1850 | 1200*1200* 1850 | 1500*1500* 1850 | Main machine weight (KG) | 180 | 250 | 510 | 1050 | 1070 | 1210 | 3000 | Usage | Applicable for 40-400 mesh feedstock of iron elimination | - - - - Application scope Electromagnetic slurry separators series : organicchemicalindustry and relatedequipment, Fine chemicals and related equipment, paper treatment, paper pulp treatment, fiberstufftreatment, food treatment, flavoring treatment, grain and oil treatment, water treatmen, Quartz Beneficiation, Sodium potassium feldspar Beneficiation, Kaolin Beneficiation.


Company Contact:


  • Phone: 86-757-86411602

  • Address: No.8, Xingfa Road, Xiabai Industry Park, Luocun, Nanhai District, Foshan City, Guangdong Province,Ch, Foshan , Guangdong , China

  • Email: Email


Published date: March 9, 2018

  • Business Description: As well as all kinds of magnetic materials and so on.

    Products are widely used in mining, power, building material, glass, ceramics, chemical and other industries, and exported to the United States, Britain, South Africa, Singapore, Malaysia, Egypt and other countries or regions.
