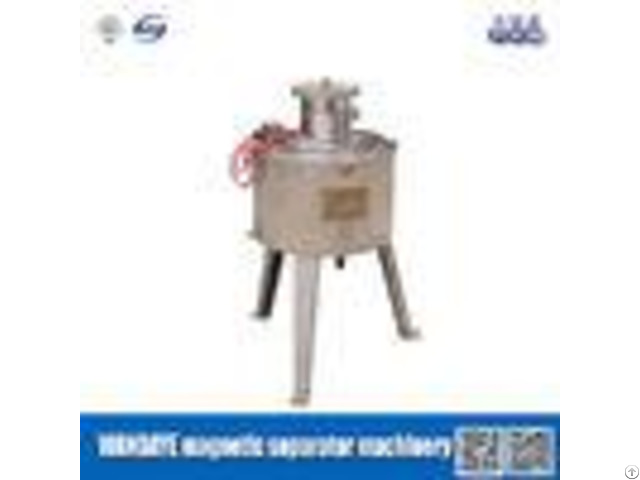

High Gradient Wet Magnetic Separator 1 5kw 160mm Diameter Slurry Separation Equipment - China

Wet Magnetic Separator Eletromagnetic Automatic for Slurry 1.5KW Diameter 160mm Product characteristic High gradient magnetic field The magnetic field distribute evenly Applying water to cool the machine The valve have a good quality Netting is made from the special material Technical parameter - - - - Model | 1.5A160 | 3A190 | 7A250 | 7A300 | 11A250 | 18.5A250 | 20A400 | Magnetic field strength(T) | 2.5 | 2 | 3 | 3 | 3.5 | 3 | 3.5 | Input voltage(ACV) | 220 | 220 | 380 | 380 | 380 | 380 | 380 | Maximumoutput current(DCA) | 10 | 7 | 20 | 20 | 20 | 55 | 25 | Maximum coil power(KW) | 1.5 | 3 | 7 | 7 | 11 | 18.5 | 20 | Insulation method | E | E | E | E | E | E | E | Cooling method | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | Water and oil double cooling | Magnetic lumen diameter(mm) | 160 | 190 | 250 | 300 | 250 | 250 | 400 | Pipe size(mm) | 50 | 50 | 89 | 89 | 89 | 89 | 89 | yield(m/h) | 3-10 | 5-10 | 10-30 | 15-30 | 10-30 | 10-30 | 20-60 | dimension(mm) | 946(H) | 860*860* 1540 | 1200*1200* 1850 | 1200*1200* 1850 | 1200*1200* 1850 | 1400*1400*1850 | 1500*1500* 1850 | Main machine weight (KG) | 180 | 510 | 1050 | 1070 | 1210 | 1500 | 3000 | Usage | Applicable for 40-400 mesh feedstock of iron elimination | - - - - Operation process Firstly, power on, then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.

After a few minutes later(you can set the time what you like depending on yourself condition), close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator.

Then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.

Application scope Electromagnetic slurry separators are widely used in the mine, chemicaland food industries to remove the iron and magnetic material from those raw material.

For example: organicchemicalin dustry and related equipment, organicchemicalindustry and related equipment, Fine chemicals and related equipment, paper treatment, paper pulp treatment, fiber stufftreatment, food treatment, flavoring treatment, grain and oil treatment, water treatmen, Quartz Beneficiation, Sodium potassium feldspar Beneficiation, Kaolin Beneficiation.
