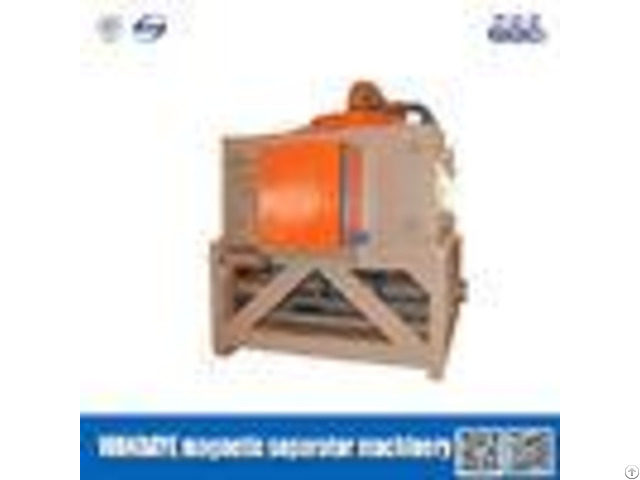

High Intensity Magnetic Separation Equipment For Non Metallic Mineral - China

5T 380ACV Magnetic Coolant Separator Eletromagnetic Water Cooling for Slurry Product characteristic 1 - Anew model of separator with high efficiency.

2 - High intensity magnetic field; 3 - The temperature inside of the machine rises slowly, ; 4 - Long working period; 5 - High efficiency in mineral processing; 6 - Easy to manual and maintain.

Technology Parameter - - - - Model | 1000 | 750 | 600 | G500 | W500SL | X500 | Magnetic field strength(T) | 5 | 5 | 5 | 5 | 3 | 5 | Input voltage(ACV) | 380 | 380 | 380 | 380 | 380 | 380 | Maximum output current(DCA) | 2500 | 1400 | 2100 | 1400 | 1400 | 1400 | Maxiumum coil power(KW) | 180 | 75 | 75 | 75 | 30 | 45 | Insulation method | E | E | E | E | E | E | Cooling method | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling | Magnetic lumen diameter(mm) | 1000 | 750 | 600 | 530 | 530 | 530 | Pipe size(mm) | 200 | 150 | 100 | 100 | 100 | 100 | yield(m/h) | 80-200 | 40-100 | 30-80 | 30-70 | 20-50 | 20-50 | demension(mm) | 2710*2410*3500 | 2600*2000*3000 | 2370* 2000*2650 | 2200* 1700*3000 | 1400* 1700*2345 | 2000*1600*2800 | Main machine weight(KG) | 35000 | 16350 | 14730 | 14100 | 6500 | 9580 | Usage | Applicable for 40-400 mesh feedstock of iron elimination | - - - - Operation process Firstly, power on, then open the admission valve and slurry valve, close the returnslurry valve and iron discharging valve, then magnetizing.

After a few minutes later(you can set the time whatever you like depending on yourself condition), close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.

Application scope Non-metallic mineral: Kaolin Beneficiation, Sodium potassium feldspar Beneficiation, Quartz Beneficiation Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.

Non-ferrous metals mineral: used for separating wolframite from pyrope Rare earth ore: recycle tantalum-niobium ores and monazite.

Other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.
