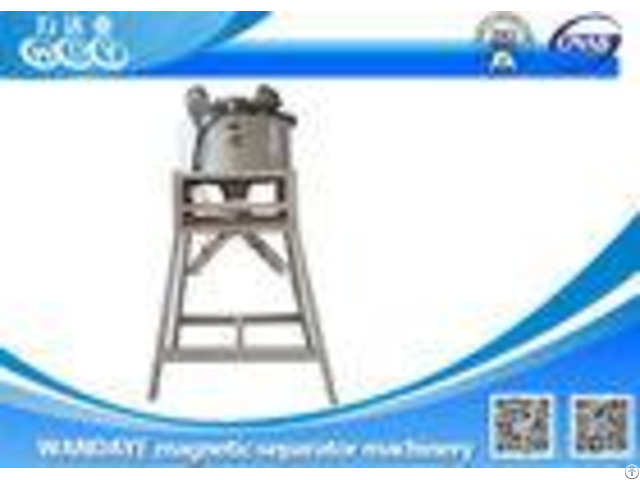

High Performance Vertical Magnetic Roll Separator For Dried Powder 2t - China

220ACV 7DCA Eletromagnetic separator Automatic for Dried-powder 2T Product characteristic An obvious efficiency in iron remove.

Applying water to cool the machine.

Enhanced the life span of the coil.

Brake valve applying the import material.

Operation process 1 - Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator.

2 - After a period, stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge.

3 - Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.

Technical parameter of contrast - - - - Model | 3A160 | 7A300 | 11A220 | 11A430 | 15A220 | 20A600 | Magnetic field strength(T) | 2 | 3 | 3 | 3 | 5 | 3 | Input voltage(ACV) | 380 | 380 | 380 | 380 | 380 | 380 | Maximum output current(DCA) | 15 | 20 | 20 | 20 | 30 | 40 | Maximum coil power(KW) | 3 | 7 | 11 | 11 | 15 | 20 | Insulation method | E | E | E | E | E | E | Cooling method | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | Magnetic lumen diameter(mm) | 160 | 300 | 220 | 430 | 220 | 600 | yield(T) | 0.5-1.5 | 1.5-4 | 0.5-3 | 1.5-6 | | | dimension(mm) | 700*700*1450 | 1320*1320* 2500 | 1300*1100* 1800 | 1500*1500* 2500 | 1350*1100*1850 | 1500*1500*2000 | Main machine weight (KG) | 450 | 1020 | 1130 | 1210 | 1500 | 2000 | Usage | Applicable for 60-300 mesh feedstock of iron elimination | - - - - Application scope Electromagnetic dried-powder separators are applied in process the fine mineral particle, the magnetic fine ferrous mineral particle such as hematite, martite, limonite, sideriteand also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin.

Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.
