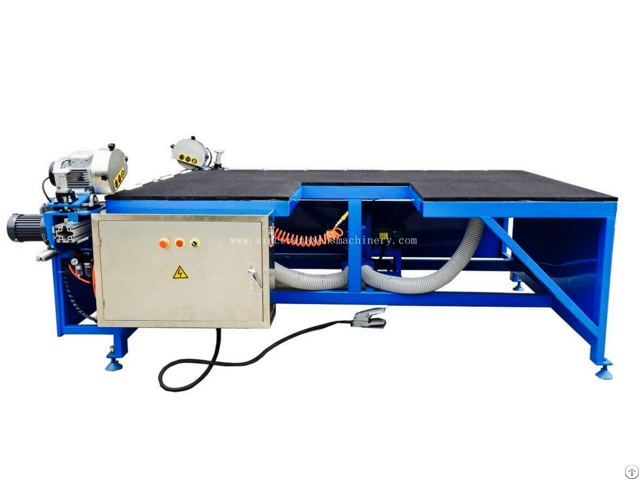

SN1600ED-2S Semi-Auto Double Heads with air flotation Low E Glass Edge Deletion machine

The machine is mainly used to remove coating on the coated glass around the insulating glass layer to meet the require of doing, using the adjacent on both sides of the same time, inter manbrane, high production efficiency, in addition to film width, thickness adjustable, PLC control the whole paragraph.

Glass aircraftidentification after the photoelectric switch automatically starts grinding wheel, according to glass size automatically shut down, equipped with air-cushion, vacuum system, to start with the wheel at the same time stop, in order to achieve the purpose of saving electricity.

1 - Voltage: 380V 50HZ(Customized)

2 - Power: 3.4Kw

3 - Max glass size: 2000×1600mm

4 - Min glass size: 500x500mm

5 - Glass thickness: 3-20mm

6 - Film deletion speed: 20m/min

7 - Machine dimension: 2965x2310x1125m m

8 - Weight: 500kg

9 - Package: Fumigation free wooden box(extra cost)

Package size: 2975*2320*1150mm and weight 600kg.

Delivery time is about 15 working days.

10 - The air floating by wind blower

11 - Grinding wheel width and diameter: width 15mm, diameter: 160mm
