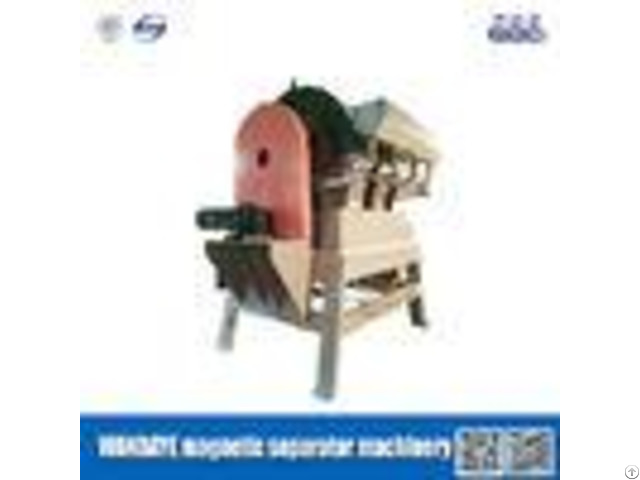

Permanent Vertical Ring High Gradient Magnetic Separator With Swivel Outer Diameter 1750mm - China

price: check with company for price

Permanent High Gradient Magnetic Separator Vertical Ring Swivel Outer Diameter 1750mm Product characteristics (1) In comparison to flat ring magnetic separators, the vertical ring permanent magnetic separator solves the technical problem of easy clogging of magnetic medium.

(2) In comparison to vertical ring high gradient magnetic separators, the vertical ring permanent magnetic separator adopts the magnetic system made of NdFeB magnetic material, whose service life is very long.

It will demagnetize only by 5% over eight years and cause no energy loss.

(3) Use several sets of magnetic combinations and increase the area of magnetic separation.

Operation process 1 - When mineral processing, firstly, filled the separation cavity with water, open the pulsating equipment, then feeding the raw ore from the feed box.

2 - The magnetic particle in the separation cavity separate from the non-magnetic particle by the different magnetic force, pulsating fluid force and gravity which those particles are acted on.

3 - The magnetic particles are absorbed on the magnetic media, the nonmagnetic particle will discharge from the iron discharge.

several minutes later, magnetic cutting, then flushing the magnetic particle from the magnetic media.

Application scope It is used to purify the non-metallic minerals and separate the low intensity magnetic minerals.

The non-metallic minerals includes quartz, feldspar, nepheline, fluorite, spodumene, kaolin.

The low intensity magnetic minerals includes hematite, wolframite and tantalum-niobium ores.


Company Contact:


  • Phone: 86-757-86411602

  • Address: No.8, Xingfa Road, Xiabai Industry Park, Luocun, Nanhai District, Foshan City, Guangdong Province,Ch, Foshan , Guangdong , China

  • Email: Email


Published date: March 8, 2018

  • Business Description: As well as all kinds of magnetic materials and so on.

    Products are widely used in mining, power, building material, glass, ceramics, chemical and other industries, and exported to the United States, Britain, South Africa, Singapore, Malaysia, Egypt and other countries or regions.
