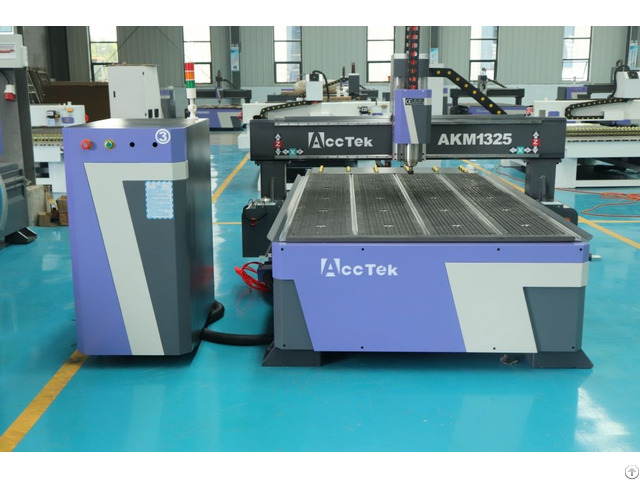

Affordable Woodworking Cnc Router Machine Akm1325 - China
price: 4450.00 Dollar US$
The cnc router AKM1325 widely used in wood furniture industry, advertising industry, mold industry.
New designed overall sheet metal for all the four sides, looks more compact and neat.
Add assistance wheels for loading sheet materials, which reduces the labor intensity of workers and improves work efficiency.
You can get the best products at the most favorable price.
The working area of this AKM1325 CNC router is 1300×2500×200mm, and the working table is T-slot and vacuum dual-purpose table.
The T-slot table can use clamps to fix small materials and save the power of the vacuum pump; the vacuum table can use vacuum adsorption to fix large materials, which is more convenient, simple and efficient.
Vacuum adsorption technology is applied to woodworking CNC router machine, which greatly improves work efficiency.
The CNC router spindle adopts the well-known Chinese brand HQD 3.2KW water-cooled spindle, which has strong power and good cooling effect, which can carry out engraving and cutting for a long time.
The X Y axis adopts helical gear rack for transmission, which makes the gear meshing higher, and the Z axis adopts Taiwan TBI ball screw transmission, which runs smoothly and has higher precision.
This woodworking CNC router AKM1325 uses the Mach 3 control system.
We use Ethernet interface controller card, high reliability, anti-interference.
The program is installed on a computer connected to the control machine.
It is the most common software for CNC machines in the world, , support WinXP Win7 Win10, doesn’t need driver installed.
Support spindle speed feedback function and power-off resume function.
Aluminum housing, shielding interference, stable and reliable.
Equipped with Leadshine stepper motor and driver, low energy consumption, fast response speed, stable performance and easy maintenance.
This CNC machine uses Fuling inverter.
This inverter has stable performance, rich combination of functions, high-performance vector control technology, low-speed and high-torque output, good dynamic characteristics and super overload capacity.
Equipped with Taiwan Hiwin square rail, compared with round rail, it has higher accuracy, better load-bearing capacity, stable operation and high wear resistance.
The engraving machine AKM1325 also has an automatic lubrication system, you only need to set the interval and lubrication time, it can automatically lubricate the guide rail and the screw.
ACCTEK new design woodworking CNC router is equipped with 3.0KW double bags dust collector.
When the CNC router is working, the dust-proof brush on the spindle to control all the sawdust residues in a small range, and then debris is sucked into the vacuum cleaner.
It not only ensures the cleanliness of the working environment, but also benefits the health of the staff.
A feeding wheel is added to the tail of the engraving machine.
When processing large-area plates, the auxiliary wheel can be used for feeding, which reduces the labor intensity of workers and improves work efficiency.
With the development of technology and the needs of production, the use of CNC router is becoming more and more common.
It can carry out more precise automatic processing of materials such as engraving, cutting, drilling and milling.
If your workshop needs a CNC equipment, you can consult and get help at any time.
Company Contact:
- Posted By: ACCTEK China
- Phone: +086-0531-86160023
- Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street,Jinan City, Jinan , ShanDong , China
- Email:
- Website: https://www.acctekgroup.com
Published date: October 8, 2021 - Modified date: October 8, 2021
- Business Description: cnc router,woodworking engraving machine,CO2 laser machine,fiber laser cutting machine,laser marking machine,auto tool changer machine
