Automatic End Wood Veneer Splice Machine - China

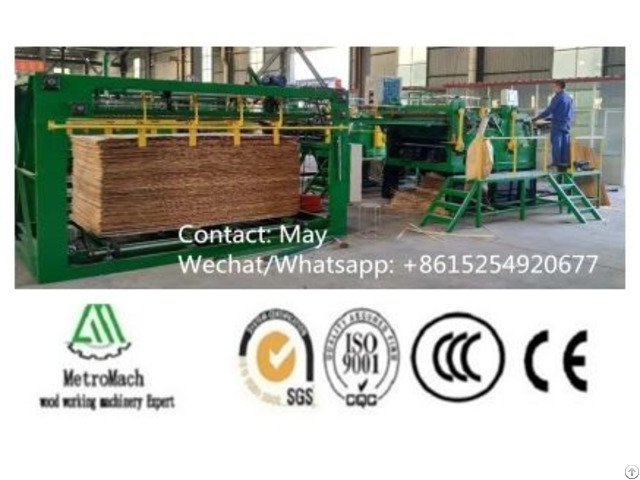

Plywood automatic middle plate splicing machine

1 - One operator required, no overlap or open joint.

2 - Save 70% core finishing.

3 - Save 80% assembling work.

4 - Save 50% puttying work.

Features and Advantages:

1 - Simple operation and labor saving.

From feeding, correction, cutting to gluing, splicing, stacking.

All of them are finished one-time automation.

2 - The whole machine servo drive, precise control, save materials, increase speed and reduce cost.

3 - High-precision control of the servo motor combined with a unique synchronous drive ensures effective control of overlap and separation.

4 - Dedicated high temperature, high strength wire enhances the product’s longitudinal tensile strength and toughness.

The effct used on thin plate is more significant.

5 - The rapid cooling system allows the hot melt adhesive line to be more evenly attached to the bottom of the board.

6 - High-precision encoder counting, the finished product cutting error is smaller.

7 - Touch operation sets the same head, tail size, cutting width and other parameters, more convenient and flexible.

8 - After using the middle plate splicing machine, the labor will be greatly saved (Save 70% assembling work, about 80% plate repair workers, and about 50% putty workers) and improve the product quality and grade of the finished board.

Title Power Unit

Front Cut 1.5kw 1

Front Drive 3kw 1

Rear Drive 3kw 1

Back Cut 1.5kw 1

Middle Transmission 1.5kw 1

Receiving Rack Transmition 1.5kw 1

Lifting 3kw 1

Staking 1.5kw 1

Refrigerating Device 2.7kw 1

Heating Device 8kw 4

Effective Thickness 1.2-4.0mm

Work Efficiency 290 sheets/hour

Overall Dimension 13000mm*4000mm*2600mm

Gross Weight 6000kg

The Total Power 27.3kw
