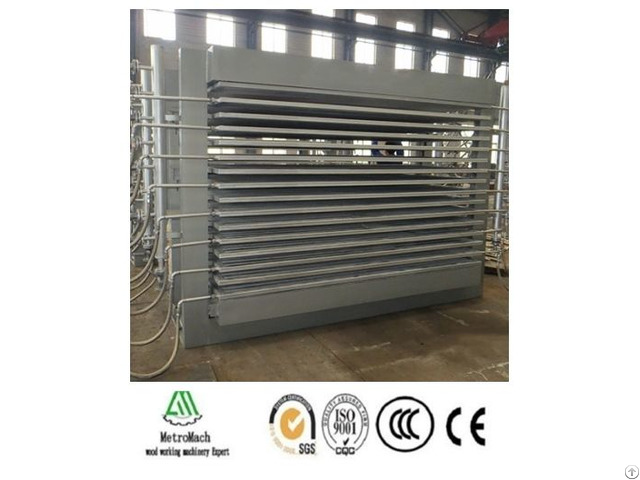

Hot Press Type Wood Veneer Dryer Machine - China
price: 35000.00 Dollar US$
Model JGBY214x8/10-15A
Direction of feeding Horizontal
Numbers of daylights 15
distance between plates 65mm
Platen material Seamless pipe
Size of platen 2800x1340x38mm
Number of cylinders 2pcs
Diameter of cylinders 180mm
Stroke of cylinders 975mm
Pressurization <6.3Mpa
Empty closing time 20seconds
Low pressure pump flowing about 140L/min
Power 5.5kw-4P
Machine size 4630x1340x2300mm
Machine Weight about 7000kgs
Company Contact:
- Posted By: Linyi Metro Int'l Trading Co., Ltd
- Phone: +8615254920677
- Address: Beiyuan Rode, Linyi , Shandong , China
- Email:
Published date: February 11, 2019
- Business Description: Linyi Metro Machinery Co., Ltd was founded in 1989 year, the earliest and biggest professional manufacturer of all kinds of wood-based panel machinery.
Our featured products include:
1 - Face veneer rotary peeling production line.
2 - Face veneer slicer peeling production line.
3 - Plywood complete production line.
4 - Particleboard / chipboard production line.
5 - MDF/HDF production line.
6 - Melamine lamination hot pressing line.
7 - LVL complete production line.
We have two factories and one exporting company(Linyi Metro Int'l Trading Co, Ltd), our machines are widely used in more than 100 countries and helped customers to produce top quality wood based panels and occupy the good market.
We can design and manufacture all specifications machines to meet customers' production demand, professional after-sales team consisted of 20 rich experienced engineers are ready for any countries for machines installation and debugging service.
Welcome to visit our company, we will try our best to support your company.
