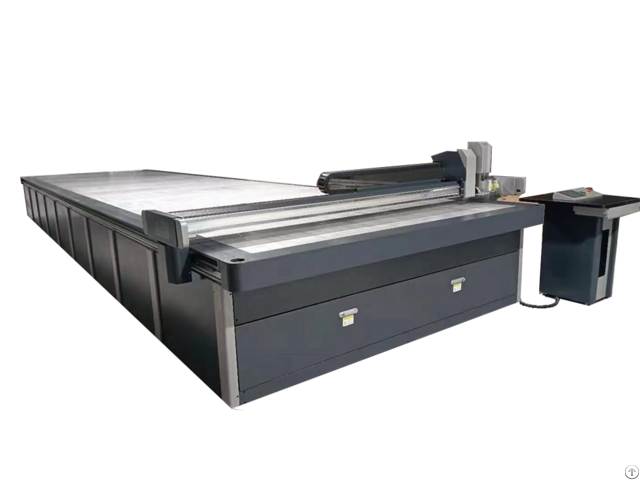

Affordable Oscillating Knife Cutting Machine - China

Oscillating knife cutting machine is ideal to cut non-metal, non-stone material, such as fabric, leather, PVC, EPE, EVA, XPE, PVC, asbestos, non asebstoc, PTFE, corrugated paper, glassfiber, carbonfiber, etc.

We are really a direct factory which CNC machine production history since 2010 - We are famous for OEM, ODM service.

We produce machines for lots of Chinese agents.

Tell us your requirement, we will make it real for you.

Model AS-1625V/AS-1625VA AS-1630V/AS-1630VA AS-2030V/AS-2030VA

Working area 1600×2500mm 1600×3000mm 2000×3000mm

Max cutting speed 1200mm/s

Applicable materials Fabric, leather, foam, EPE, EVA, corrugated paper board, honeycomb paper board, cardboard, EVA, EPE foam, plastic hollow sheet, etc.

Standard function Cutting, creasing, punching, milling, kiss cutting, through cutting, Opitional function Positioning cutting, V-shape grooving, marking, feeding, nesting

Working thickness ≤1100 mm Cutting tolerance ±0.1mm

Transmission interface Internet/USB

Transmission system Servo Motor, gear and rack

Fixed mode Vacuum absorb

Safety device Infrared sensor

Supply voltage AC 110V/220V/380V±10%, 50HZ/60HZ, customized

Rated power 11KW or customized Cutting machine configuration: • Multi-tool cutting heads with servo controlled

• Vacuum table • Numerical control

• WINDOWS 7 embedded operation system, Technical data:

• Maximum cutting speed： 1200mm/s

• Maximum moving speed: 1500mm/s

• Cutting thickness: 0.1-25mm (subject to material and customerized on the moving beam)

• Cutting tolerance: ± 0.1mm

• Transmission interface: Ethernet (default)/USB

• Fixed mode: Vacuum absorb • Rated power: 11KW
