Air Slide Belt Loom - China

Air Slide Belt Loom

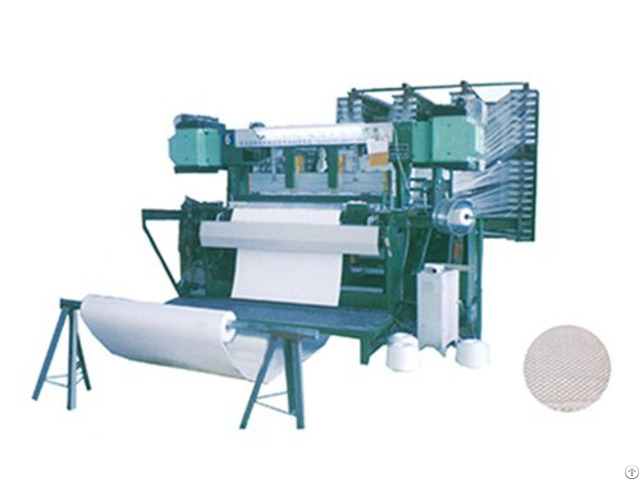

Conveyor Belt Steel Mesh Rapier Loom

Steel Mesh Rapier Loom

This machine is to weave powdery conveyor belt.

1 - Reed Width: 1400-2000mm.

2 - Range of warp density: 648 picks/10cm.

3 - Range of weft density: 272 picks/10cm

4 - Range of yarn: warp yarn: 20s/12ply, weft: 20s/8ply.

5 - Loom Speed: 80 rpm(frequency conversion stepless speed regulation.

)

6 - Power: 7.87Kw

7 - Weight of Anti -tearing Conveyor Belt Loom : About 8 Tons.

1 - Frame work: Steel wallboard, integral basement

2 - Main Drive: Variable frequency motor, reducer drive.

3 - Shedding: Double-dobby opening; 20 heald frames.

4 - Weft Insertion: Rigid double-rapier double-weft insertion; crochet hook lockstitching.

5 - Beating-up: Crank shaft and four connecting rod beating-up .

6 - Take-up: Porcupine roller positive interval take-up.

7 - Let-off: Positive continuous let-off.

8 - Control System: Adopting PLC control, it sets the buttons of output, fault, and speed.

Company Contact:

• Posted By: Shijiazhuang Textile Machinery Co., Ltd.

• Phone: 0311-83817104

• Address: No 9, Taibao road ,xinhua district, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.engineeringfabricloom.com/

• Business Description: Shijiazhuang Textile Machinery Co., Ltd. is a high-tech enterprise specializing in R&D, manufacturing and sales of special looms for industrial textile.

  It is headquartered in the capital of Hebei Province—Shijiazhuang (No.

  9, Taibao Road), covers an area of about 80,000m2, is the base of special loom manufacture for domestic industrial textiles.

  Our company has four series—wide heavy polyester mesh loom, multi-layer belt fabric loom for industrial and mineral industry and ultra-wide geotextile loom for industrial textile in more than 100 varieties.

  Our products are widely applied to industrial textile such as paper machine clothing, filter screen, press fabric, carcass of conveyor belt used in coal mine , powder conveyor belt, brake lining, felt, geotextile, framework material, etc.

  Our products account for more than 85% of market share in China and are exported to South Asia, South America, etc.

  Many of our products have been listed into “National Key New Product Plan”, “National Sci-tech Support Plan (National Program for Tackling Key Problems)”, “Industrialization Project of Special Loom for Industrial Textile” of National Development and Reform Commission, “Shijiazhuang Key Science and Technology Project” and “Hebei Scientific and Technological Invention Prize”.

  Our company is National Key Textile Machinery Enterprise, and Vice Chairman of China Textile Machinery Association and Hebei Industrial Textile Association.

  Our company has been awarded Hebei High-tech Enterprise, Shijiazhuang Enterprise Technology Center, and Shijiazhuang Weaving Machinery Engineering Research Center, owns a technology R&D team consisting of more than 100 people, the domestic and international advanced CNC production line and solid technical strength, and it Provides strong technical support for the development and manufacture of special looms in industrial textile.

  In the business philosophy of “Create the Excellent National Brand of World-class Special Loom for Industrial Textile”, our company is devoted to technical innovation of looms for industrial textile, and improves the weaving efficiency and application scope, so as to realize the industrialization of scientific research achievements and fill in domestic blank and promotes the rapid development of ultra-wide and super-thick industrial textile.
