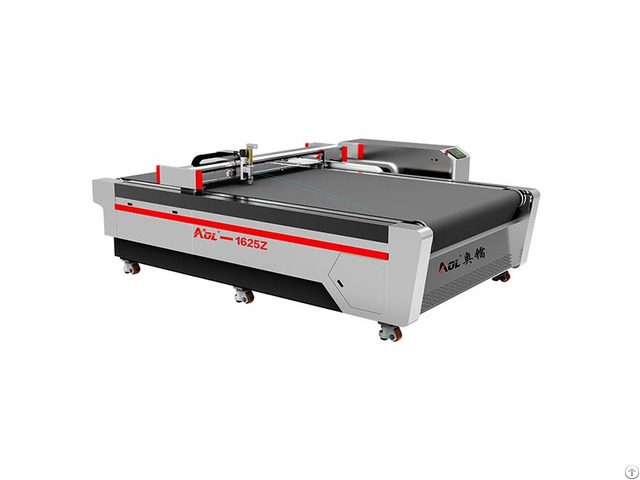

Aol Automatic Fabric Cutting Machine Price - China

Various fabric materials, composite sponge, glass fiber, rubber, silicon, carbon fiber, cardboard, KT board, carpet, leather, ABS gasket and other materials cut.

NO.

1 Machine Application: Widely used in various sponge, foam sheet, foam material, crafts, advertising display, stickers, photo posters, white cardboard, kraft paper, KT board, photo film, acrylic, PE material, honeycomb panels and other advertising printing material cutting process, single/multilayer glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass, PVC and other composite flexible materials, to achieve a perfect cutting process.

Cloth cutter, fabric production cutting, textile cutting, leather shoes cutting, Leather cloth cutting machine, applicable to professional clothing bags leather cloth cutting, hollow out, punching process, the real solution in the stamping mold, artificial cut of the low efficiency and waste material, mold fee, the problems such as cost, truly solve the artificial intelligence cutting tool.

NO.

2 Features 1 - The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

2 - The high precision AOL CNC oscillating knife cutting machine can induce draft separately and easily cuts small pieces.

3 - The anti-collision and the built-in auto-sensing devices ensure the security of AOL cnc oscillating knife leather cutting machine.

4 - High efficiency can be realized without making a high-cost knife model.

5 - The high precision AOL CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.

NO.

3 Optional Parts for choose CCD Camera

1 - CCD camera confirms MARK point selection

2 - Accurate cutting, special-shaped pattern cutting SLR camera large vision recognition

1 - SLR camera photographing

2 - Automatically extract outlines

3 - Intelligent optimization cutting

4 - Finished product display NO.

4 Packing & Delivery: 1) packing:

The whole film packaging machine;Anti-collision bag edge;No fumigated plywood wooden cases and trays with iron straps.

2) shipping:

We have contracted with a third party logistics company for many years, and our experience in transportation will guarantee your machine safety.

NO.

5 Parameters of oscillatory cutting machine Model AOL-Z4 AOL-Z6 AOL-Z8 Working area 1300×2500mm 1600×2500mm 2000*3000mm Rated power 11KW Fixed mode Vacuum suction table (auto feeding table for optional) Multifunctional head Swiss imported knife: withvibrationfull cutting, vibrationhalf cutting and cursor location function.

Tool configuration Multiple cutting knives Safety device Using infrared sensors, responsive, safe and reliable.

Translational velocity 800-1200mm/s Cutting speed 200-800mm/s(according to different cutting materials) Cutting thickness ≤22mm(according to different cutting materials) Cutting materials Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber Repeated accuracy ≤0.1mm Capacity 2GB Transmission system imported(Digital servo motor, linear guide, synchronousbelt, ball screw) Instruction system HP-GL compatible format Voltage 380V/50HZ Other configuration Servo motor, Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 7.5kw/9kw vacuum pump NO.
