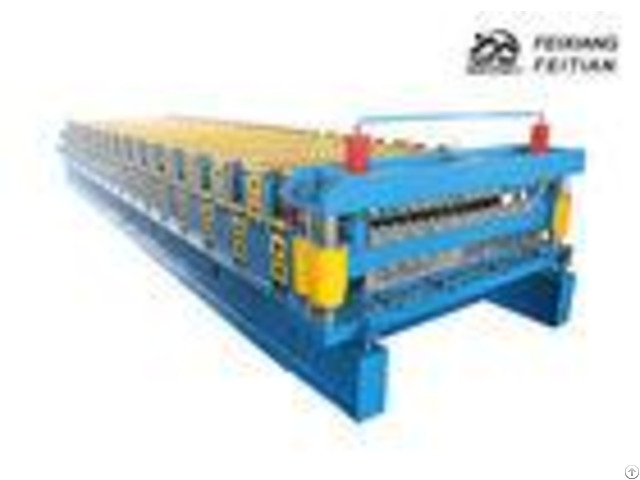

Blue Corrugated Roofing Sheets Making Machines 8 12m Min Working Speed - China
price: check with company for price
Corrugated and trapezoidal sheet double layer roll forming machine 1 - Features: Two in one machine increases your efficiency in producing Easy operate Carriage with hardened gear or chain Magnetic linear encoder for direct measuring Precision length and width control Motor brake for secure positioning Left or right side mounting 2 - suitable material: Material: Color steel, galvanized steel or Aluminum Feeding width: 1250mm Material thickness: 0.3-0.8mm Yield strength: 235-450mpa 3 - Device info: Brand: Feixiang Model number: FX double layer Machine size: 8000*1350*1250mm Weight: 6.8T Voltage requirement: 380v50hz3p Working speed: 8-12m/min 4 - Machine components: Part 1 - Deciler Part 2 - Main forming machine Part 3 - Hydraulic pump Part 4 - PLC control system Part 5 - Hydraulic pressing and cutting device Part 6 - Output table 5 - Technical parameters: Machine base: 350# steel welded Frame: Steel plate Forming stations: Up: 16 steps Down: 18 steps Roller: 45# steel with quenching Shaft: 45#steel, diameter 80mm Chain: 1 Inch PLC: Delta Motor: Delta, 4kw Counter : Pump: Yuken 4kw Cutter: Cr12 6 - Our service Warranty: 1 year After-sales service: 24h*7days*1years on line and engineer service overseas - - - - Free spare parts and tools list | No.
| Item | Name | Qty | Notes | 1 | Electric parts | Relay | 5 | | Position limit switch | 2 | | 2 | Hydraulic parts | [Magnetic] [valve] | 1 | | 3 | Machine parts | Saw Blade | 1 | | 4 | Tool | Bolt | 1 | | Rubber spacer | 1 | | - - - - 7 - My factory introduction: Feixiang roll forming machinery is a china manufacturer of metal steel cold roll forming machines, bending machines, cutting machines, and slitting machines.
It is a division of its parent company, Xingbo International.
Feixiang was founded in 1997 and is the oldest roll forming machine maker around today in the north of china.
Its history includes the first double layer color steel roll forming machine, the first high speed interchangeable C U keel roll forming machine, the first gear drive with water cooling cable tray roll forming machine created by Mr.
Fu in 2005 - In 2013, they first successfully developed high speed rotary punching machine, which highest speed could be 100m/min, makes the company got government recognition.
The company marketed overseas its first roll forming machine in 2006 and established relations of cooperation with customers from over 80 countries all around the world.
Feixiang has built up a reputation for designing high-quality, high-speed, safe and [cost-effective] cold forming and bending equipments .
They have become a status symbol for high productive capacity and the safe and easy operate.
The company is synonymous with technical and has been involved with several famous international exhibition since 2008 - The company currently has 2 invention patents, 1 utility model patents, has been accepted by the 1 invention patents, 2 utility model patents.
Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy" .
Company Contact:
- Phone: 86-317-8293238
- Address: No.88,yingbin road,industrial development zone,botou city,hebei province, Hengshui , Hebei , China
- Email:
Published date: March 28, 2018
- Business Description: The company currently has 2 invention patents, 1 utility model patents, has been accepted by the 1 invention patents, 2 utility model patents.
Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy".
