Bridge Type Large Duty Gantry Cnc Machine For Rgear Engineer Machinery Xqm 6080 - China

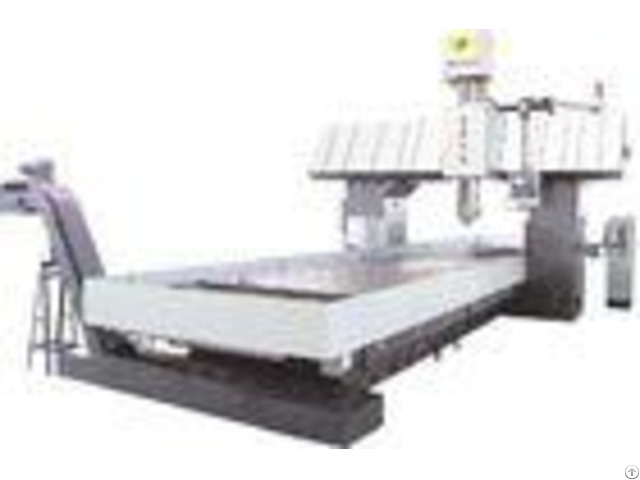

XQM-6080 bridge type large-duty cnc gantry boring machine for rgear / engineer machinery Application: This machine is bridge type boring and milling machine with horizontal moving beam occupies a small area and has great bearing capacity.

Adopts double ram, each ram adopts CNC double direction (left, right) single head, that is, A axis.

Can adjust at any Angle and position, milling, boring, drilling, and tapping all these processes for the any angles of the workpiece can be made in one clamping.

This machine is used to the automobiles, motorcycles, printing machinery, textile machinery, vehicles and other machinery manufacturing industry for the parts processing.

SPECIFICATIONS: - - - - Item | Unit | Specs | Worktable Size (WXL) | mm | 6000X8000 | Pass Width | mm | 6680 | T-SLOT | T-slot width | mm | | T-slot pitch | mm | | Spindle to Table Distance | mm | 150-1540 | Spindle Number | | BT50 | Spindle Rotation Speeds | r/min | 10-4000 | Spindle Torque | Nm | 500 | Travel | Longitude(X) | mm | 8000 | Lateral(Y) | mm | 7550 | Vertical(Z) | mm | 1300 | rotation(A) | | 95 | In Feeding Speeds | Longitude(X) | mm/min | 10-8000 | Lateral(Y) | mm/min | 10-8000 | Vertical(W) | mm/min | 10-4000 | rotation(A) | r/min | 3 | Fast In Feeding Speed | Longitude(X) | mm/min | 12000 | Lateral(Y) | mm/min | 12000 | Vertical(Z) | mm/min | 6000 | rotation(A) | r/min | 4 | Spindle Servo Power | Kw | 46X2 | In Feeding Servo Power | Longitude(X) | Nm | 28.4X4 | Lateral(Y) | Nm | 18.6X2 | Vertical(Z) | Nm | 28.4X2 | rotation(A) | Nm | 3.5x4 | Linear Positioning Accuracy | mm | 0.01/1000 | Linear Re-positioning Accuracy | mm | 0.01 | Rotation Positioning Accuracy | | 3 | Rotation Re-positioning Accuracy | | 2 | Max Worktable Weight | T | 380 | - - - - Main Features: 1 - The layout is Reasonable and advanced, the appearance is beautiful.

The lateral, longitudinal and vertical guide rail adopts large size roller linear guide rail, it has the peculiarities of high sensitivity.

Transmission adopts precision gear and rack.

Longitudinal, lateral and head adopts double motor to backlash; vertical adopts gravity backlash; longitudinal transmission and beam lifting all equipped with double drive, beam equipped with double spindle, good synchronization, and the machine spindle is motorized spindle with central water cooling function.

The complete machine is of good rigidity, high precision and high stability.

2 - The machine tool control system can configure SIEMENS system, FANUC system, SYNTEC system and AC servo motor.

3 - CNC system adopts man machine conversation, so menu selection, background edits and programming function is powerful and easy to learn.

Large memory capacities, perfect diagnostic function, display the alarm message, easy to maintenance.

It has the pitch compensation and cutter compensation function.

4 - According to customer requirements, CNC control system can configure any brand.

5 - Cutter have automatic assemble and unassembled function.

6 - The machine tool adopts automatic timing quantitative lubrication device.

The Main Configuration of The Machine Tool (1)NC system adopts Siemens CNC system (2) X, Y, Z guide rail adopts precision linear roller guide rail, C axis adopts hydraulic guide to ensure the machine accuracy and service life.

(3) X, Y, Z all adopts transmission of gear and rack.

(4) In the three-transmission system, adopts NC software limitation, electrical limitation and many control system to make sure a safe work environment.

(5) Bed material: rotary table adopts QT450 casting, artificial aging treatment, ram slide base and column adopts 16Mn steel plate-welded, Stress relieving after welding (580 of the annealing temperature).

(6) All gear for machine tool adopts hard tooth surface nitriding treatment, high hardness, wear resistance.

Key Technical Parts: Processing Sample: QualityControl:
