Cnc Plc Control Plate Bending Machine High Effective For Carbon Steel - China

CNC Four Roller Steel Sheet Plate Bending Rolling Machine, PLC Control Technical Parameters: CNC Four Roller Steel Sheet Plate Bending Rolling Machine - - - - Model | Max.

Roll Thickness | Max.

RolLwidth | Upper roller diamater | Side Roller Diemater | Motor | mm | mm | mm | mm | Kw | W12-4x1500 | 4 | 1500 | 140 | 120 | 2.2 | W12-6x2000 | 6 | 2000 | 190 | 170 | 3 | W12-6x2500 | 6 | 2500 | 190 | 170 | 3 | W12-8x2500 | 6 | 2500 | 210 | 190 | 7.5 | W12-12x2000 | 12 | 2000 | 270 | 250 | 11 | W12-12x3000 | 12 | 3000 | 300 | 270 | 11 | W12-16x2500 | 16 | 2500 | 300 | 270 | 11 | W12-16x4000 | 16 | 4000 | 390 | 360 | 18 | W12-20x2000 | 20 | 2000 | 330 | 300 | 11 | W12-20x3000 | 20 | 3000 | 360 | 330 | 15 | W12-25x2500 | 25 | 2500 | 390 | 360 | 18.5 | W12-30X2500 | 30 | 2500 | 390 | 360 | 18.5 | W12-30x3000 | 30 | 3000 | 430 | 390 | 22 | W12-35x3000 | 35 | 3000 | 460 | 420 | 30 | W12-45x2500 | 45 | 2500 | 460 | 420 | 30 | W12-45x3000 | 45 | 3000 | 510 | 460 | 37 | W12-50x2500 | 50 | 2500 | 510 | 460 | 45 | W12-50X3000 | 50 | 3000 | 540 | 500 | 45 | W12-65x3000 | 65 | 3000 | 650 | 550 | 55 | W12-85x3000 | 85 | 3000 | 760 | 680 | 75 | - - - - W12-series CNC Four-roller bending machine with international advanced technology, controlled by PLC programmable numerically, all hydraulic driving, it's a heavy duty CNC rolling machine which can come true automatic bending, also it's the nesy equipment for bending multi section curved, square, round, conical and other special shape working piece.

Optional Special Device: # Top support device # Lower roller auxiliary drive # Side support device # Cone device # Feeding roll-table # Roller shaft grinding/ chrome encapsulating Design Characteristics: # Numerically control, roll forming by one time.

# Touch screen support visual input, edit, save 500 sets data.

# EPS electronic balance system, keep the rollers running parallel within 0.15mm.

# Support man-machine dialog, fault self diagnoise, operation error intelligent judgment.

# Drum shaped roller shaft, bending roundness, high straightness.

# All hydraulic driving, both side rollers doing line running inner the guide.

# The smaller central distance between two side rollers, come out the most correct bending presicion.

# Thickner whole-frame, meet the need of middle & larger bending.

# Machine frame integral quenching eliminate stress, never deformation.

# The roller shaft i whole forgin by quenching and tempering, hardening treatment process.

# Two control mode: manually and automatically.

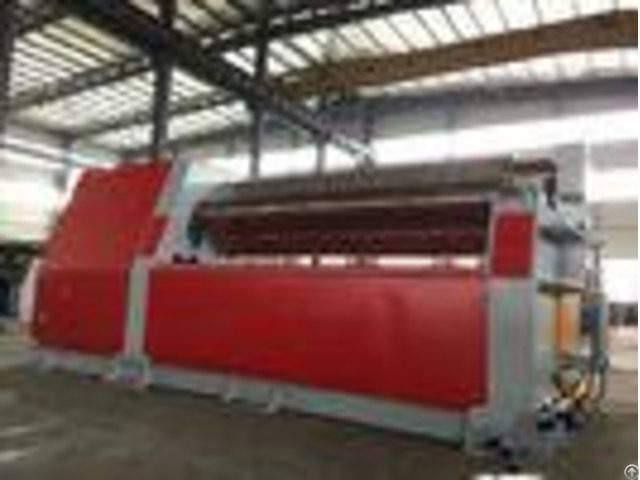

Working Principle CNC Four Roller Steel Sheet Plate Bending Rolling Machine Roll Machine Details
