Double Layer Ibr Roll Forming Machine Easy Operate For Steel Roofing Iso Approved - China
price: check with company for price

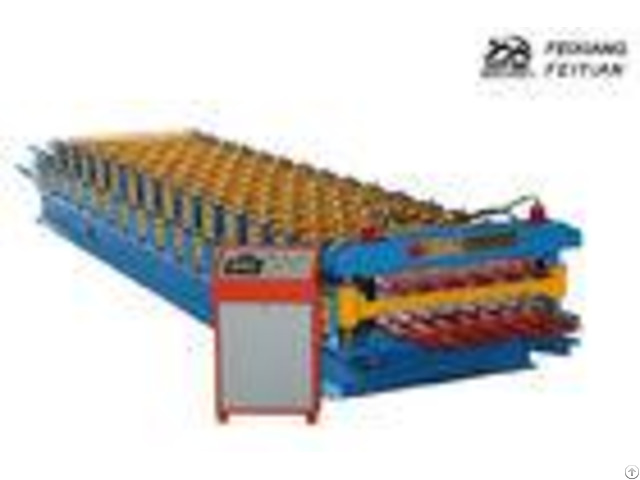

trapezoid and ibr double layer roll forming machine trapezoid and ibr double layer roll forming machine can produce two different profile drawings on one machine, saving more room and more money when compared with using two different machines.
The double layer panel roll forming machine can produce one layer profile at a time.
There is one clutch on the side of the machine and we just need to move one handle wheel to roll form the other layer profile.
-This double layer roll forming machine line includes 7 tons manual decoiler, roll forming host, PLC control system and hydraulic cutting system.
-The manual decoiler is free for the machine, it can hold 7 tons of raw material, and normally the distance between the manual decoiler and the roll forming host is 3 meters.
-Roll forming host has 11 rows of rollers to make the doubley layers profiles as per customer's request.
Technical Parameters: - - - - No.
| Item | Specification | 1 | Can Formed Material | PPGI, GI.
| 2 | Equipment operation | Automatic | 3 | Voltage | 380V 50Hz 3Phase or as your requirement | 4 | Thickness of sheet (mm) | 0.3-0.6mm | 5 | Material width(mm) | As per your requirement | 6 | Cover Width of the sheet after formed | as your drawing | 7 | The size of the roll forming machine | 6000mmx1500mmx1550mm | 8 | Speed | 12-15m/min | 9 | Diameter of shaft | 70mm | 10 | Weight of the Machine | 6500-7500KGS | 11 | Material of rollers | #45 steel quenched and chromed | 12 | Motor brand | Siemens or Guomao | 13 | PLC | Siemens or Delta or Mitsubushi | 14 | Total power (kw) | 9.5kw | 15 | Power of hydraulic system | 4kw | 16 | Power of main molding core | 5.5kw | - - - - Machine Components For roof tile roll forming machine, according to our company standard, we will offer you following components as the standard configuration.
Company Contact:
- Phone: 86-317-8293238
- Address: No.88,yingbin road,industrial development zone,botou city,hebei province, Hengshui , Hebei , China
- Email:
Published date: March 28, 2018
- Business Description: The company currently has 2 invention patents, 1 utility model patents, has been accepted by the 1 invention patents, 2 utility model patents.
Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy".
