Dw100 Wide Rapier Loom - China

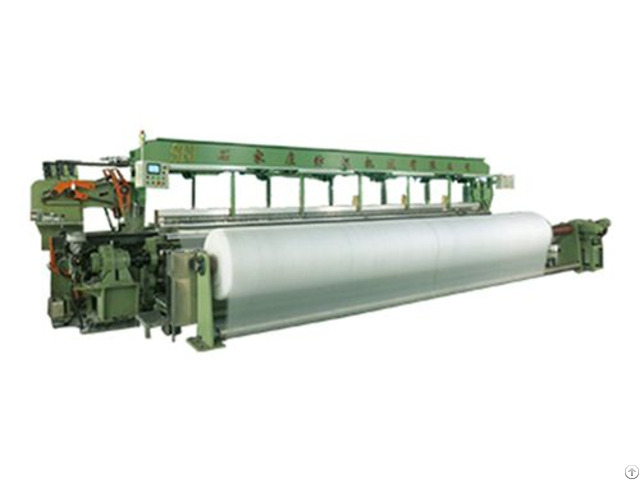

DW100 Wide Rapier Loom

common forming fabric polyester fabric loom

Air Slide Belt Loom

This machine is mainly suitable for weaving paper-making woven press felt, filter cloth used in mine, wide geotextile, wide glass fiber cloth, such as wide canvas fabric.

1, Range of weft wires and warp wires: Ply monofilament, ply yarn, glass fiber, wire mesh and other wires

2, Fabric Weight: 800g-1000g/㎡

3, Reed Width: 5000-13000mm

4, Designed Speed: 45rpm.

5, PLC control Air Slide Belt Loom Power: about 15kw.

6, Beating-up Force: Not less than 1000kg/m

1, The main wallboard: adopting iron box structure, the complete machine installed on the basement.

2, Main Drive: Adopting bilateral motor and pneumatic clutch two-sided coaxial drive.

3, Shedding: Single side -drawing dobby, 10 pieces of heald frames.

4, Weft Insertion: Servo motor drive, rapier insertion.

5, Beating-up: Multi-segment combined crank four-linkage weft beating.

6, Take up Mechanism: Servo motor drive, three rollers positive take up.

7, Let off: Servo motor drive, single warp beam let off.

8, Fabric Rolling : cylinder drive, external fabric rolling system.

9, Lubrication system: The complete machine is lubricated with automatic grease lubrication and hand pump centralized oil lubrication.

10, integral fire retardant core Loom Controlling System: With OMRON PLC computer control system, the complete machine can freely set up various parameters and automatically display faults.
