Easy Operation Highway Guardrail Roll Forming Machine With Hydraulic Cutting - China
price: check with company for price
Easy Operation Highway Guardrail Roll Forming Machine With Hydraulic Cutting Product Description Specifications 1 - GuardRail Roll Forming Machine with GCr15 Bearing Steel Rollers for Highways 2 - precise forming 3 - reliable quality 4 - professional service 5 - CE&ISO certificates Note: We can do two wave highway guardrail forming machine, three wave highway guardrail forming machine and two wave three wave interchangeble highway guardrail machine.
Which one you want? 1 - Processing flow diagram of Guard rail bending machine Decoiling--levelling--pun ching holes--run-out table---forming--cutting- -production--table 2 - Technical parameters of Guard rail bending machine - - - - Model number | Easy Operation Highway Guardrail Roll Forming Machine With Hydraulic Cutting | Rolled material | 2-4mm thickness, General Steel such as Q235 | Effective width | 350mm | Feeding width | 488mm | Forming steps | 16 stations | Roller | GCR15, quenched treated HRC58-62C | Diameter of shaft | 100mm | Main motor power | 37 kw | Pump power | 15 kw | Drive type | by chains Or by Gear box(worm driving) | Cutting Blade | Cr12, heat treatment 60-62C | Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (1mm, far better than industrial standard 3mm).
| component | 1 set of manual decoiler, 1 set of main roll forming machine, 1 set of computer control cabinet, 1 set of hydraulic System, 1 set of cutting mechanism, 1 set of counter, 1 set of output table | Payment terms | cash, T/T, L/C.
| Delivery time | 75 Working days | - - - - Remark: Above parameters are standard, we can design and make some change exactly according to your requirements.

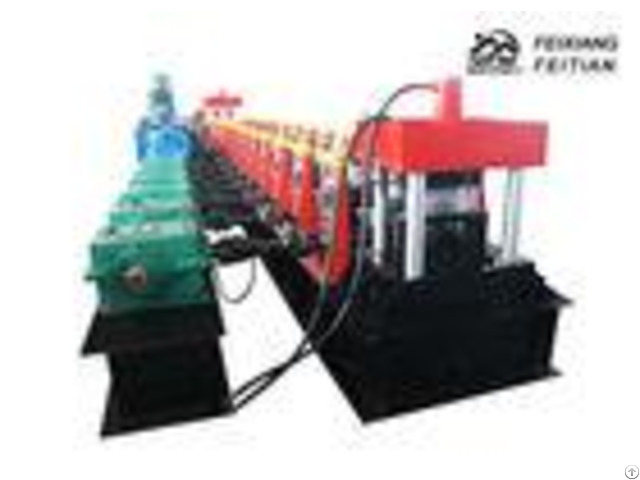

3 - Profile and Real photos of Guard rail bending machine
Company Contact:
- Phone: 86-317-8293238
- Address: No.88,yingbin road,industrial development zone,botou city,hebei province, Hengshui , Hebei , China
- Email:
Published date: March 28, 2018
- Business Description: The company currently has 2 invention patents, 1 utility model patents, has been accepted by the 1 invention patents, 2 utility model patents.
Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy".
