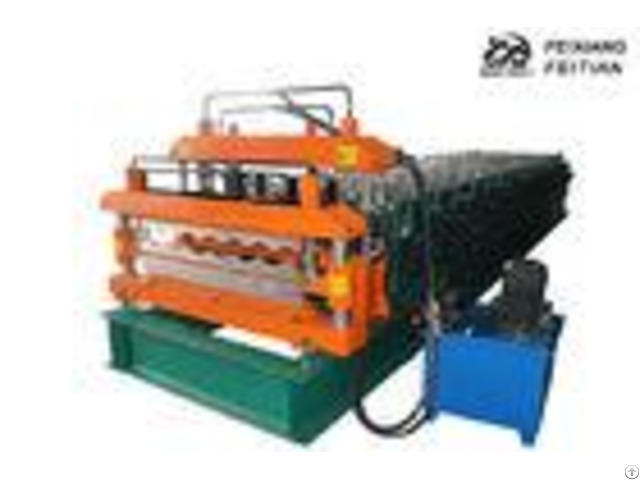

Full Automatic Double Layer Roll Forming Machine Easy Operate For Roof Panels - China

Full Automatic Double Layer Roll Forming Machine Technical parameters: - - - - Technical parameters ofFull Automatic Double Layer Roll Forming Machine | 1 | Cutting&Hydraulic type | Double guide pillar | 2 | Hydraulic motor power | 3kw, 4kw | 3 | Hydraulic Pressure | 10-12MPa | 4 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) | 5 | Cutting drive | Decelerating motor + Chain drive gear all by high-frequency | 6 | Control System | Panasonic /Siemens / Schneider / Delta PLC | 7 | Length measurement | Encoder | 8 | Main Frame | 300mm/350mm H-Beam or 350mm | 9 | Backboard Thickness | 17mm/200mm | 10 | Chain Size | 1inch/2inch | 11 | Feeding Material | Better as your drawing or from our designer | 12 | Feeding Thickness | 0.18mm-0.8mm | 13 | Effective width | Better as your drawing or from our designer | 14 | Productivity | 12-20/min | 15 | Roll Station | 14rows& 14(according to different design) | 16 | Roller Diameter | 70mm/75mm(depend on different design) | 17 | Roller material | 45# steel | 18 | Cutter material | Cr12 mould steel heat-treated hardness of HRC = 60-62 degrees | 19 | Total Weight | 2t-12t | 20 | Package of machine | Waterproofing membrane, standard export packing | 21 | Roll fromiomg machine of the Components | Manual decoiler1 set(5t) Guiding Platform1 set Coil Strip Leveler1 set Main Machine of Roll Forming1 set Hydraulic Station1 set Supporter Table1 set Coil Strip Leveler1 set | 23 | machine technical parameters can be changed, according to customer's need.

| - - - - Machine description: Rollers In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

Roller chrome coated thickness: 0.05 mm.

Computer Control Cabinet It adopts MITSUBISHI PLC to control.

The target piece`s length is adjustable and digit of it can be adjusted.

Computed mode has two modes: automatic and manual one.

The system is easy to operate and use.

Hydraulic Station It is derived by a Gear Pump.

After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.

The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .

and two sets of Solenoid Valves.

Power of The Pump: 4kw Hydraulic oil : 40# Entry Beach Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

Please refer to the equipment regulation to know the function of locate angle iron.

Automatic Uncoiler With moving car It is used to support the steel coil and uncoil it in a turnable way.

The steel coil is uncoiled by automatic.

Loading capacity: 5T Inner diameter: 450-508mm Shearing Mechanism It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.
