Fx Steel Pipe Manufacturing Machine 6 12m Min Speed With Elbow Bending - China
price: check with company for price

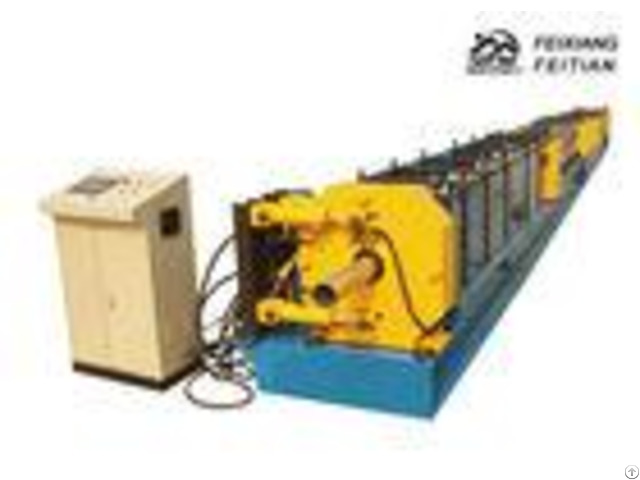

FX Steel Pipe Manufacturing Machine 6 - 12m/Min Speed With Elbow Bending Main description: Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified as following data (or equivalent tolerances); Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades.
Maximum production speed: 6-12 metres per minute; Material: 0.3-0.8mm, up to 235MPA GI or color steel Machine info: Model number: FX Steel Pipe Manufacturing Machine 6 - 12m/Min Speed With Elbow Bending Machine size: 11800mm*1200mm*900mm Weight: 4.5T Voltage requirement: 380v 50hz3p Machine components: - - - - Decoiler | 1 set with loading capacity 3T | PLC control system | 1 pcs | Main forming machine | 1 set | Hydraulic pump | 1 set with power 4kw | Cutting device | 1 pcs | Runout table | 1 set | - - - - Technical parameters: Rollers: 24 roller stations, 3 rollers for flattening Diameter of the roller: 62mm Material of rollers: 45# steel, with heat treatment and surface is being hard chromed Main stand : 350# H steel Thickness of wall panel: 16mm Dimensions( main structure): 11800mm*1200mm*900mm Weight: about 5000kg Power: 5.5kw+4kw Voltage: according to customer's request
Company Contact:
- Phone: 86-317-8293238
- Address: No.88,yingbin road,industrial development zone,botou city,hebei province, Hengshui , Hebei , China
- Email:
Published date: March 28, 2018
- Business Description: The company currently has 2 invention patents, 1 utility model patents, has been accepted by the 1 invention patents, 2 utility model patents.
Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy".
