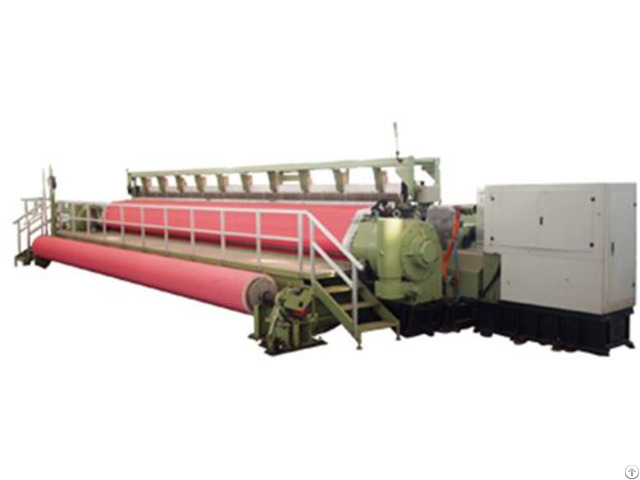

GWJ Dryer Fabric for Paper Making Rapier Loom

high-strength Paper Making Rapier Loom

heavy fabrics Paper Making Rapier Loom

This machine is suitable for weaving high-strength and high-density dryer fabric, double warp polyester heterotype flat yarn and other kinds of heavy fabrics.

1 - Range of Polyester Monofilament: warp: 0.3~1.0 mm, weft: 0.2~0.9mm.

2 - Weft Density: 35~400 picks/10cm.

3 - Reed Width: 9000~12500mm.

4 - Economic Speed: 60rpm.

5 - Power: About 150kw.

6 - single layer Paper Making Rapier Loom Weight: About 80-100T

1 - Framework Mechanism: The main wallboard is combined with cast iron box, the wallboard fixed on the whole basement.

2 - Main Drive Mechanism: Adopting new type of reluctance motor, two-sided coaxial drive.

3 - Shedding Mechanism: Two-sided Double lift heavy dobby, 16 pieces of heald frames.

4 - Weft Insertion: Adopting serve motor driven, double rapiers weft insertion, 4 color automatic weft selection.

5 - Beating-up: Multi-segment combined crank four-linkage weft beating.

6 - Take-up Mechanism: Adopting motor drive to two sided special large torque mechanical turbine and worm reducer, three-roller positive take-up.

7 - Let-off Mechanism: Servo motor drive two warp beam, positive let off.

8 - Fabric Rolling Mechanism: Independent external central fabric rolling system.

9 - Lubrication System: The whole machine is automatic centralized lubrication and manual lubrication.

10 - computer control Paper Making Rapier Loom Controlling System: With PLC computer control system, the complete machine can set various parameters and automatically display faults, automatically stop.
