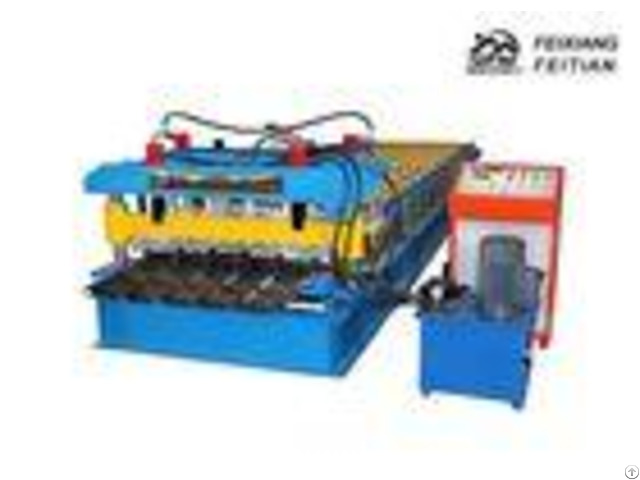

High Performance Glazed Tile Roll Forming Machine With 0 3 0 6mm Thickness - China
price: check with company for price
High Performance Glazed Tile Roll Forming Machine With 0.3 - 0.6mm Thickness Company organizes the production as per ISO9001: 2008 standard.
From design control, process control, inspection control to delivery, installed and service, the whole process control.
The running of quality system performs quality manual, procedure files, work instruction and related technical and management standard together with standard and regulation layout by company strictly.
Quality system realizes whole screw and whole procedure control completely.
1 - Main Material used Material: Color steel, galvanized steel or Aluminum Feeding width: 1000mm Material thickness: 0.3-0.6mm Yield strength: 235-450mpa 2 - Machine details Brand: Feixiang Model number: FX960 Voltage requirement: 380v60hz3p Working speed: 2-4m/min 3 - Machine composition - - - - No.
| Name | Unit | Qty | 1 | Decoiler | set | 1 | 2 | Main Machine for roll forming | set | 1 | 3 | Control System(PLC) | set | 1 | 4 | Pressing System | set | 1 | 5 | Cutting System | set | 1 | 6 | Output Table | set | 1 | - - - - 4 - Main parameters - - - - Main parameters ofHigh Performance Glazed Tile Roll Forming Machine With 0.3 - 0.6mm Thickness | 1 | Length of the main part | about 7500*1350*1250mm | 2 | Weight of main part | 5.2Tons | 3 | Voltage | 380V/50HZ 3Phase | 4 | Roller fixer | middle plate | 5 | Frame | 400H steel | 6 | Drive mode | chain | 7 | Material of rollers | 45#steel, surface hard chromium plating | 8 | Material of shafts | 45#steel | 9 | Diameter of shafts | 80mm | 10 | Number of rollers | 15 rollers | 11 | Main power | 5.5kw | 12 | Material of mould | Cr12 quenched | 13 | Power supply | hydraulic power | - - - - - - - - - - - -
Company Contact:
- Phone: 86-317-8293238
- Address: No.88,yingbin road,industrial development zone,botou city,hebei province, Hengshui , Hebei , China
- Email:
Published date: March 28, 2018
- Business Description: The company currently has 2 invention patents, 1 utility model patents, has been accepted by the 1 invention patents, 2 utility model patents.
Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy".
