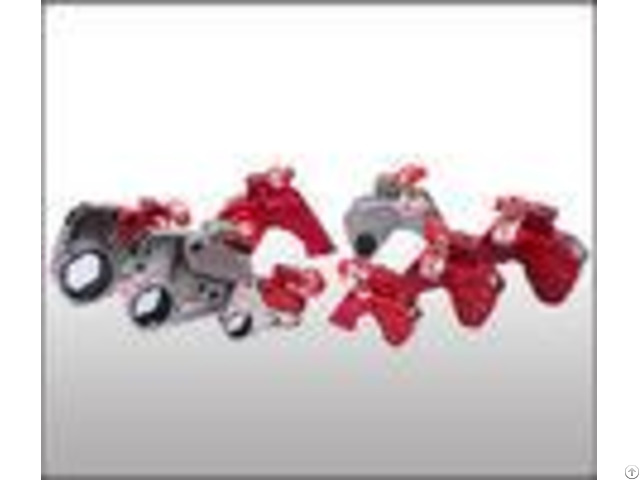

High Speed Hollow Hydraulic Torque Wrench Low Profile Double Acting - China

8PDCT Hollow hydraulic torque wrench for mining, petroleum platform, power plant Characters: 1 - Hydraulic torque wrench, made of ultra-high strength aluminum-titanium alloy, thin design, double - acting, high speed and big corner; 2 - clamping type, interchangeable plug - ins, no need of special tools, torque repetition accuracy as high as 3%; 3, 360360 and 180X360 rotary hose connectors, which are suitable for compact occasions and convenient for positioning.

4, wrench strength design is sufficient, the overall reaction arm, fewer movable parts, durable and reliable; 5 - Can work with metric and imperial hexagonal insert socket, which can realize that one power head is equipped with multiple insert socket for simultaneous use; 6 - Most of them are used in special working conditions: double nuts, bolts are too close to the equipment wall, bolts are too long, nut spacing is too small, etc.

7 - If needed, can work with our back-up wrench, more convenient.

Product Drawings: Technical Data: - - - - SELECTION CHART OF PDCT SERIES ULTRO THIN HOLLOW HYDRAULIC WRENCH | MODEL | 2PDCT | 4PDCT | 8PDCT | 14PDCT | 18PDCT | 30PDCT | 50PDCT | TORQUE(N.

m) | 232-2328 | 241-2414 | 585-5858 | 647-6474 | 1094-10941 | 1177-11774 | 1852-18521 | 2695-26958 | 488-41882 | 4459-44593 | 7081-70813 | NUT SIZE(S) | 19-55 | 60 | 34-65 | 70-80 | 41-95 | 100-105 | 50-117 | 65-130 | 110-155 | 160-175 | 105-225 | POWER HEAD WEIGHT(KG) | 0.9 | 0.9 | 1.7 | 1.7 | 3 | 3.1 | 4.6 | 6.5 | 10.4 | 10.4 | 35.5 | WORKING HEAD WEIGHT(KG) | 1.5 | 1.5 | 3.4 | 3.4 | 6.3 | 6.3 | 11.4 | 14.3 | 20.5 | 20.5 | 42 | L | 196 | 196 | 258 | 263 | 30 | 311 | 360 | 388 | 430 | 441 | 493 | H1 | 126 | 129 | 163 | 173 | 192 | 201 | 225 | 264 | 303 | 315 | 328 | H2 | 102 | 105 | 136 | 146 | 168 | 177 | 2045 | 231 | 272 | 285 | 295 | W1 | 32 | 32 | 42 | 42 | 53 | 53 | 64 | 71 | 85 | 85 | 102 | W2 | 51 | 51 | 66 | 66 | 83 | 83 | 99 | 109 | 131 | 131 | 160 | - - - - FAQ: 1, How to choose the correct model? a.

according to your required max.

torque force.

b.

your nuts size.

2 - Package Usually, packed in metal case, then in carton, easily to move, protect the wrench from damage.

3 - Warranty.

We provide one year quality warranty from the shipping date.

except the artificial damage 4 - Delivery time Usually we have stock, can be send out 2-3 working days, big quantity, we need to confirm the delivery time.

Application field: Our hydraulic torque wrenches are wildely used in mining, wind power plant, petroleum, chemical and many other field
