High Strength Body Hydraulic Torque Tools 451 4542n M With 1 Inch Square Drive - China

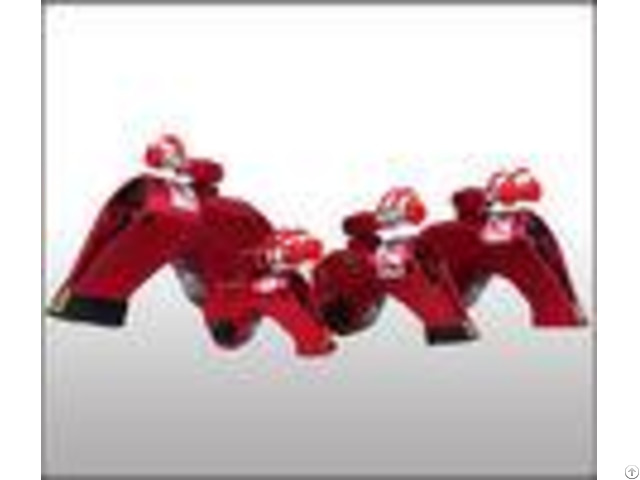

3PDTA square drive hydraulic torque wrench, 451-4542N.

m with 1" square drive Characters: 1 - The hydraulic torque wrench main body, made of high-tech aerospace materials and ultra-high strength aluminum-titanium alloy steel to integrally form the fuselage, thus comprehensively strengthening the strength and toughness of the fuselage; 2 - The wrench coupling which can rotate 360360, is convenient to operate without using space restrictions; 3 - The trigger lock catch can be easily pressed, and the 360 fine-tuning reaction arm can be set on a solid fulcrum at will.

4 - Large teeth ratchet wheel is adopted, and the accuracy is up to 3% Products Drawings: Technical Data: - - - - SELECTION CHART OF PDTA SERIES HYDRAULIC TORQUE WRENCH | MODEL | 07PDTA | 1PDTA | 3PDTA | 5PDTA | 8PDTA | 10PDTA | 15PDTA | 20PDTA | 25PDTA | 35PDTA | 50PDTA | TORQUE(N.

m) | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2062-20627 | 2666-26664 | 3572-34725 | 4866-48666 | 7200-72000 | BOLT SIZE(M) | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-125 | WEIGH(KGS) | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 18 | 25 | 31 | 45 | 87 | L1(mm) | 110.8 | 130 | 166 | 198 | 213 | 231 | 270 | 295 | 314 | 355 | 400 | L2(mm) | 139.3 | 182 | 241 | 281 | 308 | 336 | 400 | 443 | 464 | 489 | 516 | H1(mm) | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 | 153 | 160 | H2(mm) | 65.8 | 72 | 95 | 123 | 130 | 141 | 179 | 182 | 200 | 217 | 223 | H3(mm) | 76.2 | 99 | 130 | 155 | 171 | 187 | 201 | 228 | 255 | 290 | 291 | H4(mm) | 108.1 | 144 | 176 | 198 | 216 | 230 | 244 | 268 | 295 | 330 | 341 | R1(mm) | 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 67 | 79 | 81 | R2(mm) | 68.3 | 99 | 134 | 152 | 171 | 174 | 195 | 250 | 251 | 271 | 259 | SQUARE DRIVE | 3/4" | 3/4 | 1 | 1-1/2 | 1-1/2 | 1-1/2 | 2-1/2" | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | - - - - Application field: Our hydraulic torque wrenches are wildely used in mining, wind power plant, petroleum, chemical and many other field FAQ: 1, How to choose the correct model? a.

according to your required max.

torque force.

b.

your nuts size.

2 - Package Usually, packed in metal case, then in carton, easily to move, protect the wrench from damage.

3 - Warranty.

We provide one year quality warranty from the shipping date.

except the artificial damage 4 - Delivery time Usually we have stock, can be send out 2-3 working days, big quantity, we need to confirm the delivery time.
