Horizontal Manual Universal Milling Machine Double Head Wrench For Light Industry - China

price: 1.00 Dollar US$

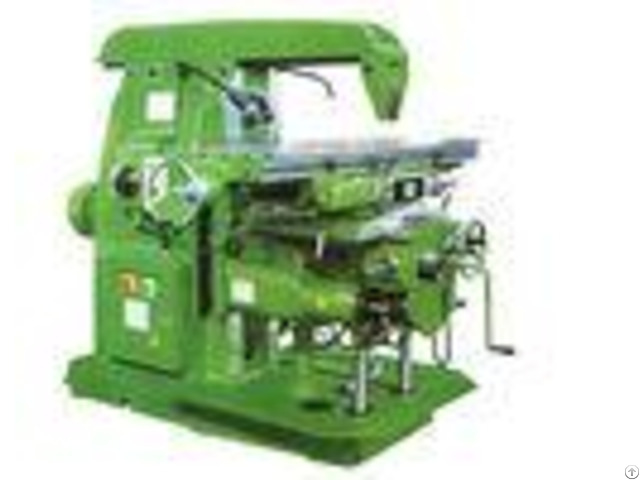

Horizontal Manual Universal Milling Machine Double Head Wrench For Light Industry

Products Photos Catalog Horizontal Manual Photos Catalog

Horizontal Universal Double Head Wrench Knee-Type Milling Machine, Manual machine tool Specification: - - - - Item | Unit | BL-X6140 | Table size(WL) | mm | 4001700 | T slot(NO.

/width/gap) | mm | 3/18/90 | Table travel(X, Y, Z)(manual/auto) | mm | 900/880, 315/300, 350/330 | Range of table feed(X/Y/Z) | mm/min | 23.5~1180/23.5~1180/8~394 | Table rapid speed(X/Y/Z) | mm/min | 2300/2300/770 | Distance from spindle to table face | mm | 30-380 | Taper of spindle | / | ISO50(7: 24) | Spindle bore | mm | 29 | Spindle speed range | rpm | 30-1500(18 steps) | Swivel angle of vertical milling head | | 45 | Spindle motor power | kw | 11 | Feed motor power | kw | 3 | Feed motor speed | rpm | 1430 | Overall size | mm | 255621591770 | Weight | kg | 3800 | - - - - The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in milling plane, inclined plane and slot on miscellaneous work pieces of various metals by means of cylindrical or angle milling cutter in either down-milling or up-milling.

It is characterized by stabilizing precision, sensitive response, light in weight, power feed and rapid adjustment in longitudinal, cross, vertical traverse.

Equipped with various accessories, it can be applicable to versatile processing.

In addition to all the principal features of horizontal milling machines working table can be swiveled up to 45 degree.

Equipped with dividing head, it can be used for various spirals and especial surfaces such as spur and helical cylindrical gears and flutes of twist drills.

According to customers require, every kind of milling machine can be equipped with digital display.

Standard accessories: 1 - Horizontal arbor assembly 2 - Double head wrench 3 - Inner hexagon spanner 4 - Rod mill 5 - Oil gun 6 - Knee crank Manufacturing Workshop


Company Contact:


  • Phone: 86-510-82736946

  • Address: QIANQIAO High-Tech Development Zone, WUXI CITY, JIANGSU PROVINCE,21400 China, Wuxi , Jiangsu , China

  • Email: Email


Published date: February 9, 2018

  • Business Description: Jiangsu Qiangli Machinery Co., Ltd. Was incorporated at 2005, Our company is a high& new technological enterprise which takes developing and manufacturing of CNC machine tools, their key parts , common machine tools and sheet metal machining equipments as its main business.
