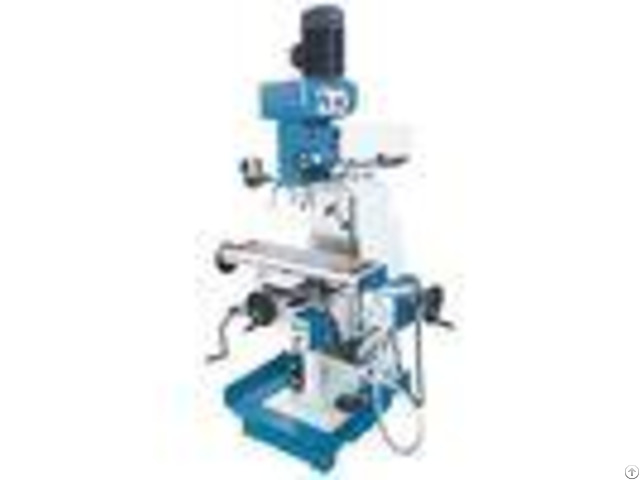

Manual Operation Drilling And Milling Machine 1 5kw Power With High Accuracy - China
price: 1.00 Dollar US$
Manual Operation Vertical Universal Milling And Drilling Machine With 1.5KW Power Description: The machineis a multifunction drilling and milling machine, bed rigidity, movement stability, high accuracy.
Guide by quenching with good wear ability.
Vertical milling, horizontal milling adopts gear drive, transmission of large torque.
Longitudinal can be moved with machinery power feeder, reduce labor intensity and improve the machining accuracy and surface finish.
Guide by quenching with good wear ability.
Milling head mounted on the front sliding arm, it can move back and forth, not only in the vertical plane of rotation about 45 degrees, but also turn 360 degrees in the bed with a good universal nature of the processing.
If installing appropriate attachments, this machine has many processing function, such as milling, drilling, boring, plane abrasion, etc.
Operation expediently, performance reliably, applying to metal finishing and maintain of kinds of companys, especially tools, moulds, fastenerprocessing.
Specifications - - - - Max.
drilling dia (mm) | 50 | Max.
end milling width (mm) | 100 | Max.
vertical milling dia (mm) | 25 | Max.
boring dia (mm) | 120 | Max.
tappinig dia (mm) | M16 | Distance from spindle to table surface (mm) | 70-420 | Spindle speed range( r.p.m) | 110-1760(V) | 58-1355(H) | Spindle travel (mm) | 120 | Table size (mm) | 800x240 | Table travel (mm) | 400x230 | Overalldimensions (mm) | 1290x1220x2100 | Main motor power (kw) | 0.85/1.5(V) 1.5(H) | N.
W/G.
W (kg) | 970/1120 | - - - -
Company Contact:
- Posted By: Jiangsu Qiangli Machinery Co.,Ltd
- Phone: 86-510-82736946
- Address: QIANQIAO High-Tech Development Zone, WUXI CITY, JIANGSU PROVINCE,21400 China, Wuxi , Jiangsu , China
- Email:
- Website: https://www.qianglimachine.com
Published date: February 9, 2018
- Business Description: Jiangsu Qiangli Machinery Co., Ltd. Was incorporated at 2005, Our company is a high& new technological enterprise which takes developing and manufacturing of CNC machine tools, their key parts , common machine tools and sheet metal machining equipments as its main business.
