My820 Grinding Lathe Machine High Precision Surface Grinderfor Metal Polishing - China

price: 1.00 Dollar US$

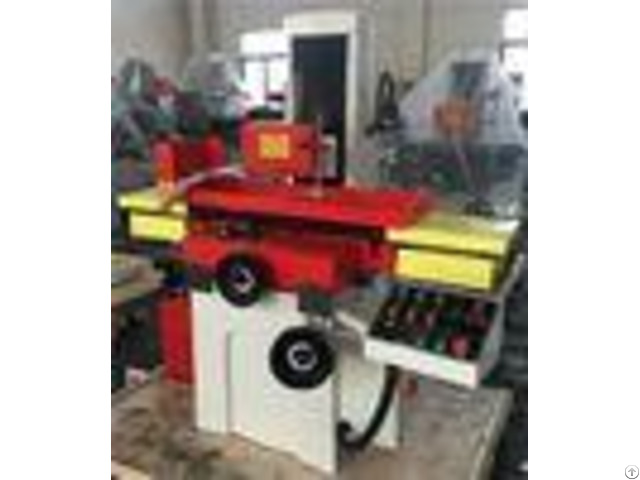

My820 Grinding Lathe Machine High Precision Surface Grinderfor Metal Polishing

Products Photos Catalog My820 Grinding Lathe Photos Catalog

MY820 Grinding Lathe Machine for precision Metal Polishing Features: 1, Machine reasonable structure, good rigidity, good looks, easy to operate.

2 - Table movement in longitudinal is hydraulic transmission.

3 - Spindle motor no vibration and low noise.

Specification: - - - - Specification | MY820 | MY1022 | Max workpiece to be ground | 480x200mm | 540x250mm | Max travel of table | 520x220mm | 560x260mm | Table max cutting area | 520x200mm | 540x250mm | T-slot (number width) | 1x14 | 1x14 | Distance from table to spindle center | 450mm | 450mm | Wheel size (dia width bore) | 200x20x31.75 | 200x20x31.75 | Spindle speed | 2850r/m | 2850r/m | Table longitudinal (left and right) speed | 3-20m/min | 3-20m/min | Table horizontal (before and after) the amount of feed | Continuous (variable speed) | 150mm/min | 150mm/min | Intermittent (stepless) | 0-5 | 0-5 | The handlewheel rotates | 2.5mm | 450mm | Hand wheel each grid | 0.02mm | 0.02mm | Vertical (up and down) feed wheel feed | The handlewheel rotates | 1.25mm | 2 | Hand wheel each grid | 0.01mm | 0.01mm | Spindle motor | 1.5KW | 1.5KW | Cooling motor | 40W | 40W | Hydraulic motor | 1.5KW | 1.5KW | Working pressure | 3Mpa | 3Mpa | Oil tank capacity | 80L | 80L | Max capacity | 18L/min | 18L/min | The mechanical surface of the base of parallelism | 300/0.004mm | 300/0.004mm | Surface roughness | Ra0.32 | Ra0.32 | N.W. | 1.05T | 1.25T | G.W. | 1.15T | 1.35T | Machine size | 1680x1140x1720mm | 1680x1220x1720mm | - - - - Standard accessories: permanent magnetic chuck 400*200mm, chip tray, coolant system Optional accessories: 2 axis DRO CE protection(with sand wheel protection, hydraulic protection, worktable protection) Guarantee Terms: Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time.

Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc.

Also can talk face to face during fairs.

You will get response within 20 hours.


Company Contact:


  • Phone: 86-510-82736946

  • Address: QIANQIAO High-Tech Development Zone, WUXI CITY, JIANGSU PROVINCE,21400 China, Wuxi , Jiangsu , China

  • Email: Email


Published date: February 9, 2018

  • Business Description: Jiangsu Qiangli Machinery Co., Ltd. Was incorporated at 2005, Our company is a high& new technological enterprise which takes developing and manufacturing of CNC machine tools, their key parts , common machine tools and sheet metal machining equipments as its main business.
